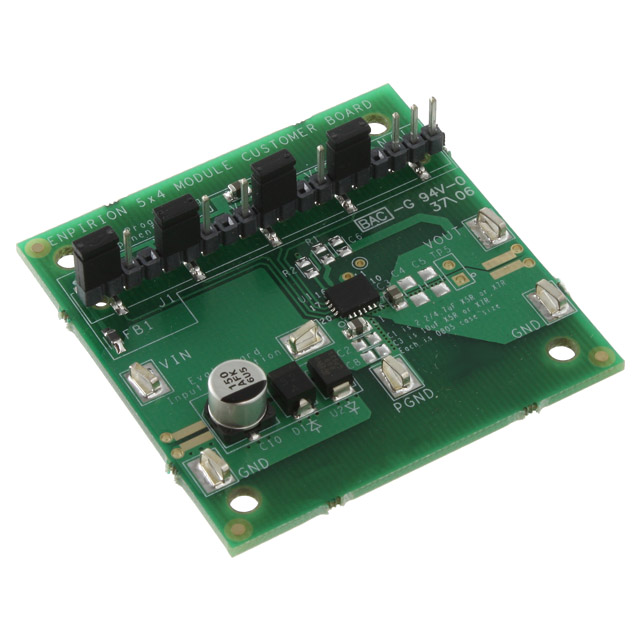

EVB-EP5382QI
ObsoleteAltera
EVAL BOARD FOR EP5382QI
Deep-Dive with AI
Search across all available documentation for this part.
EVB-EP5382QI
ObsoleteAltera
EVAL BOARD FOR EP5382QI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EVB-EP5382QI |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 800 mA |
| Frequency - Switching | 4 MHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | EP5382QI |
| Voltage - Input [Max] | 5.5 V |
| Voltage - Input [Min] | 2.4 V |
| Voltage - Output | 2.8V, 1.8V, 1.2V, 3.3V, 2.7V, 2.5V, 3V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EP5382 Series
EP5382QI Enpirion® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Documents
Technical documentation and resources
