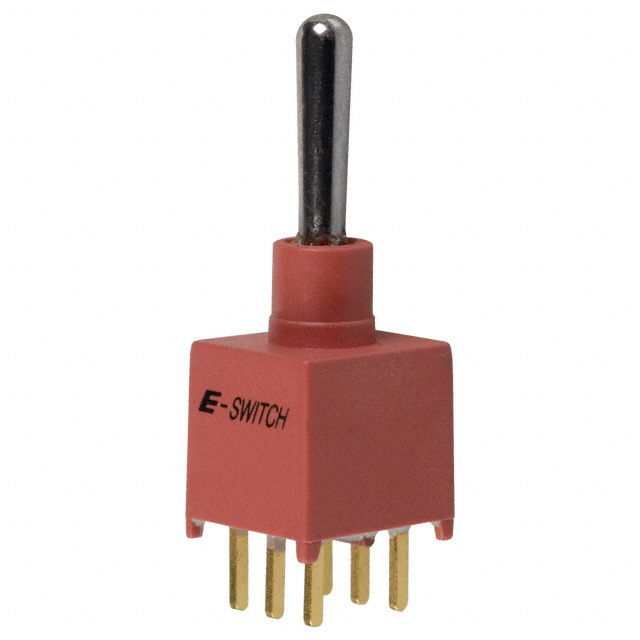

200AWMDP1T1A1M2RE

Active

E-Switch

SWITCH TOGGLE DPDT 0.4VA 20V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TOGGLE DPDT 0.4VA 20V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	200AWMDP1T1A1M2RE	200AWMDP1 Series

Actuator Length [x]	10.16 mm	6.1 - 10.16 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	Unthreaded	Unthreaded
Circuit	DPDT	DPDT
Current Rating (Amps)	0.4 VA	0.4 VA
Electrical Life	50000 Cycles	50000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Switch Function	On-On	On-On
Termination Style	PC Pin	PC Pin
Voltage Rating - AC	20 V	20 V
Voltage Rating - DC	20 V	20 V

SWITCH TOGGLE DPDT 0.4VA 20V

Part	Actuator Material	Mounting Type	Electrical Life	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Illumination	Voltage Rating - AC	Voltage Rating - DC	Termination Style	Current Rating (Amps)	Circuit	Actuator Type	Features	Actuator Length [x]	Bushing Thread	Ingress Protection
E-Switch 200AWMDP1T2A1M7RE	Brass, Chrome Plated	Right Angle, Through Hole, Vertical	50000 Cycles	On-On	-30 ░C	85 °C	Non-Illuminated	20 V	20 V	PC Pin	0.4 VA	DPDT	Standard Round	Epoxy Sealed Terminals	6.1 mm	Unthreaded	IP67 - Dust Tight, Waterproof
E-Switch 200AWMDP1T1A1M2RE	Brass, Chrome Plated	Through Hole	50000 Cycles	On-On	-30 ░C	85 °C	Non-Illuminated	20 V	20 V	PC Pin	0.4 VA	DPDT	Standard Round	Epoxy Sealed Terminals	10.16 mm	Unthreaded	IP67 - Dust Tight, Waterproof
E-Switch 200AWMDP1T1A1M7RE	Brass, Chrome Plated	Right Angle, Through Hole, Vertical	50000 Cycles	On-On	-30 ░C	85 °C	Non-Illuminated	20 V	20 V	PC Pin	0.4 VA	DPDT	Standard Round	Epoxy Sealed Terminals	10.16 mm	Unthreaded	IP67 - Dust Tight, Waterproof
