MRS10KBF

Obsolete

TE Connectivity Passive Product

RES ARRAY 4 RES 10K OHM 1206

Search across all available documentation for this part.

Obsolete

TE Connectivity Passive Product

RES ARRAY 4 RES 10K OHM 1206

Technical Specifications

Parameters and characteristics for this part

Specification	MRS10KBF

Applications	Voltage Divider (TCR Matched)
Circuit Type	Isolated
Height - Seated (Max) [Max]	0.026 in
Height - Seated (Max) [Max]	0.65 mm
Mounting Type	Surface Mount
Number of Pins	8
Number of Resistors	4
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	1206 (3216 Metric), Convex, Long Side Terminals
Resistance (Ohms)	10k
Size / Dimension [x]	0.126 "
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Temperature Coefficient	25 ppm/°C
Tolerance	0.1 %

Part	Package / Case	Number of Pins	Temperature Coefficient	Tolerance	Mounting Type	Number of Resistors	Circuit Type	Resistance (Ohms)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications
TE Connectivity Passive Product MRS10KBF	1206 (3216 Metric) Convex Long Side Terminals	8	25 ppm/°C	0.1 %	Surface Mount	4	Isolated	10k	155 °C	-55 °C	0.063 in	1.6 mm	0.126 "	3.2 mm	0.026 in	0.65 mm	Voltage Divider (TCR Matched)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

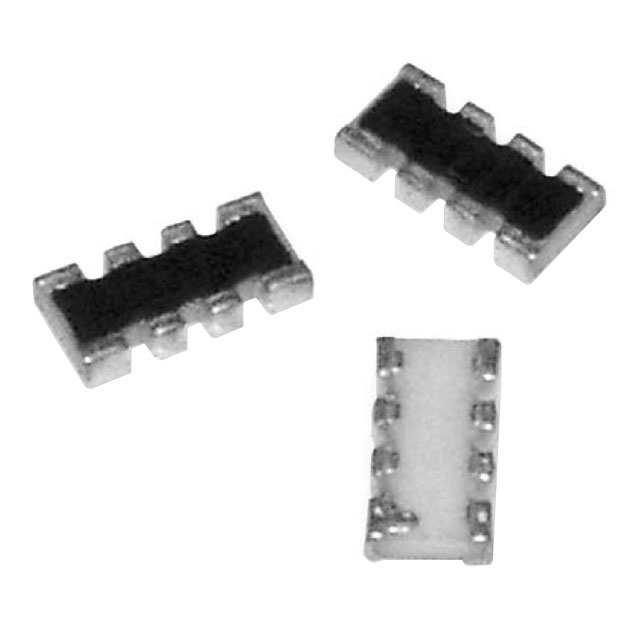

10k Ohm ±0.1% 62.5mW Power Per Element Isolated 4 Resistor Network/Array ±25ppm/°C 1206 (3216 Metric), Convex, Long Side Terminals
