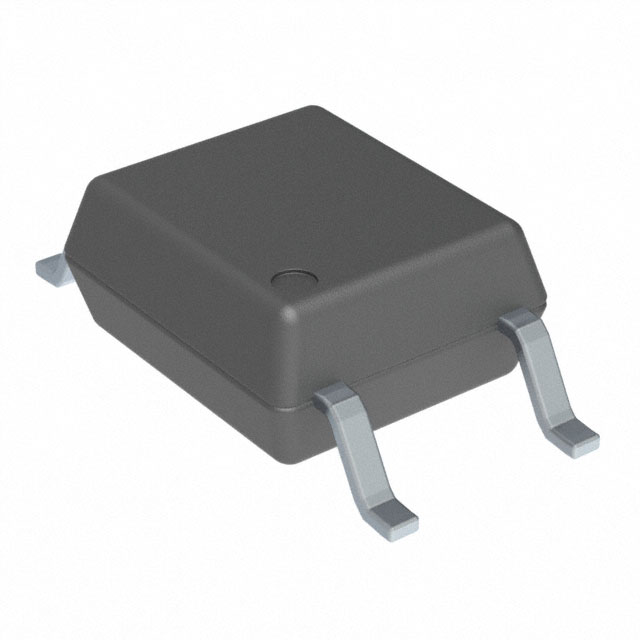

LTV-355T-A

Active

Diodes Inc

OPTOISOLTR 3.75KV 1CH DARL 4-SOP

Search across all available documentation for this part.

Active

Diodes Inc

OPTOISOLTR 3.75KV 1CH DARL 4-SOP

Technical Specifications

Parameters and characteristics for this part

Specification	LTV-355T-A

Current - DC Forward (If) (Max)	50 mA
Current - Output / Channel	80 mA
Current Transfer Ratio (Max)	7500 %
Current Transfer Ratio (Min) [Min]	600 %
Input Type	DC
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Output Type	Darlington
Package / Case	4-SMD, Gull Wing
Rise / Fall Time (Typ) [custom]	60 µs
Rise / Fall Time (Typ) [custom]	53 µs
Supplier Device Package	4-SOP
Vce Saturation (Max) [Max]	1 V
Voltage - Isolation	3750 Vrms
Voltage - Output (Max) [Max]	35 V

Part	Voltage - Isolation	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current Transfer Ratio (Min) [Min]	Package / Case	Input Type	Supplier Device Package	Current Transfer Ratio (Max)	Vce Saturation (Max) [Max]	Number of Channels	Current - Output / Channel	Mounting Type	Current - DC Forward (If) (Max)	Voltage - Output (Max) [Max]
Diodes Inc LTV-355T-A	3750 Vrms	Darlington	-55 °C	110 °C	60 µs	53 µs	600 %	4-SMD Gull Wing	DC	4-SOP	7500 %	1 V	1	80 mA	Surface Mount	50 mA	35 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Optoisolator Darlington Output 3750Vrms 1 Channel 4-SOP
