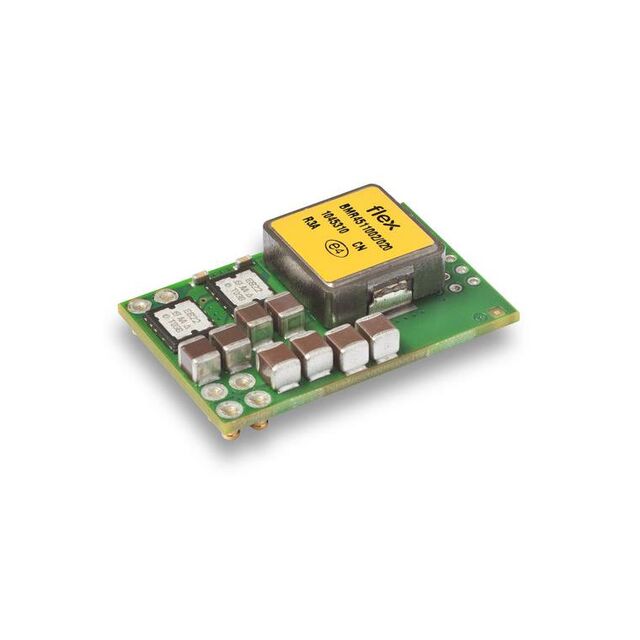

BMR4511002/020

Active

Flex Power Modules

DC DC CONVERTER 0.6-3.6V 144W

Search across all available documentation for this part.

Active

Flex Power Modules

DC DC CONVERTER 0.6-3.6V 144W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BMR4511002/020	BMR451 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable	Active Low, Enable
Current - Output (Max) [Max]	40 A	40 A
Efficiency	94.7 %	94.7 %
Features	Remote Sense, Adjustable Output, PMBus™, Remote On/Off	Remote Sense, Adjustable Output, PMBus™, Remote On/Off
Mounting Type	Surface Mount	Surface Mount, Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	16-SMD Module	16-SMD Module, 16-DIP Module
Power (Watts)	144 W	144 W
Size / Dimension [x]	30.9 mm	30.9 mm
Size / Dimension [x]	1.21 in	1.21 in
Size / Dimension [y]	0.79 "	0.79 "
Size / Dimension [y]	20 mm	20 mm
Size / Dimension [z]	8.2 mm	8.2 mm
Size / Dimension [z]	0.32 "	0.32 "
Standard Number	62368-1	62368-1
Type	Non-Isolated PoL Module, Digital	Non-Isolated PoL Module, Digital
Voltage - Input (Max) [Max]	14 V	14 V
Voltage - Input (Min) [Min]	4.5 V	4.5 V
Voltage - Output 1 [Max]	3.6 V	3.6 V
Voltage - Output 1 [Min]	0.6 V	0.6 V

DC DC CONVERTER 0.6-3.6V 144W

Part	Features	Voltage - Input (Max) [Max]	Approval Agency	Current - Output (Max) [Max]	Efficiency	Number of Outputs	Voltage - Input (Min) [Min]	Mounting Type	Control Features	Applications	Standard Number	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Type
Flex Power Modules BMR4511002/020	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	14 V	CB, CSA, IEC, TUV, UL	40 A	94.7 %	1	4.5 V	Surface Mount	Active Low, Enable	ITE (Commercial)	62368-1	0.6 V	3.6 V	16-SMD Module	8.2 mm	30.9 mm	0.79 "	1.21 in	20 mm	0.32 "	144 W	-40 °C	120 °C	Non-Isolated PoL Module, Digital
Flex Power Modules BMR4510002/020	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	14 V	CB, CSA, IEC, TUV, UL	40 A	94.7 %	1	4.5 V	Through Hole	Active Low, Enable	ITE (Commercial)	62368-1	0.6 V	3.6 V	16-DIP Module	8.2 mm	30.9 mm	0.79 "	1.21 in	20 mm	0.32 "	144 W	-40 °C	120 °C	Non-Isolated PoL Module, Digital

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 38.32

General part information

Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.6 ~ 3.6V 40A 4.5V - 14V Input

Technical documentation and resources

No documents available
