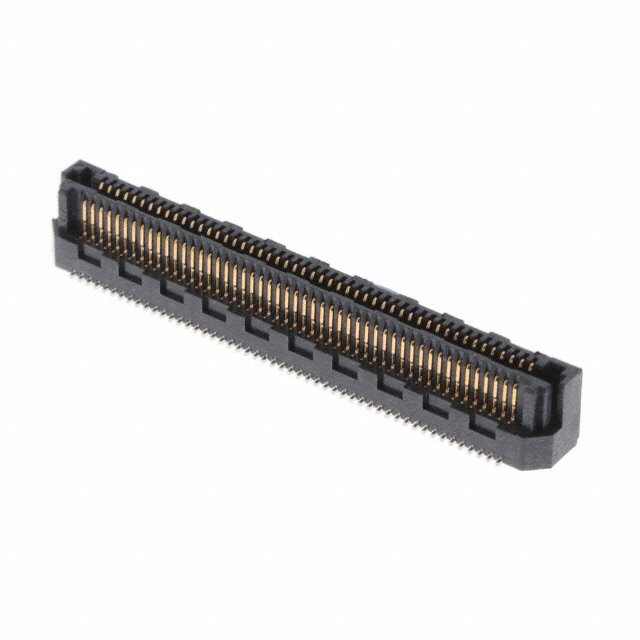

LSS-150-03-L-DV-A-K-TR

Active

Samtec Inc.

CONN SELF-MATE 100POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLSS Datasheet Datasheet +1

LSS-150-03-L-DV-A-K-TR

Active

Samtec Inc.

CONN SELF-MATE 100POS SMD GOLD

Deep-Dive with AI

DocumentsLSS Datasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LSS-150-03-L-DV-A-K-TR

Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board	5.3 mm
Height Above Board	0.209 in
Mated Stacking Heights	8 mm, 10 mm, 7 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

LSS-150 Series

Part	Number of Positions	Connector Type	Number of Rows	Pitch [x]	Pitch [x]	Features	Mated Stacking Heights	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Mounting Type	Height Above Board [z]	Height Above Board [z]
Samtec Inc. LSS-150-01-F-DV-A-K-TR	100	Self Mating Non-Gendered Hermaphroditic	2	0.64 mm	0.025 in	Board Guide Pick and Place	6 mm 7 mm 9 mm	Gold	3 Áin	0.076 Ám	0.169 in	4.3 mm	Surface Mount
Samtec Inc. LSS-150-02-F-DV-A	100	Self Mating Non-Gendered Hermaphroditic	2	0.64 mm	0.025 in	Board Guide	9 mm 10 mm 12 mm	Gold	3 Áin	0.076 Ám			Surface Mount	0.287 in	7.3 mm
Samtec Inc. LSS-150-03-L-DV-LC	100	Self Mating Non-Gendered Hermaphroditic	2	0.64 mm	0.025 in		7 mm 8 mm 10 mm	Gold	10 Áin	0.25 Ám	0.209 in	5.3 mm	Surface Mount
Samtec Inc. LSS-150-02-L-DV	100	Self Mating Non-Gendered Hermaphroditic	2	0.64 mm	0.025 in		9 mm 10 mm 12 mm	Gold	10 Áin	0.25 Ám			Surface Mount	0.287 in	7.3 mm
Samtec Inc. LSS-150-03-L-DV-A	100	Self Mating Non-Gendered Hermaphroditic	2	0.64 mm	0.025 in	Board Guide	7 mm 8 mm 10 mm	Gold	10 Áin	0.25 Ám	0.209 in	5.3 mm	Surface Mount
Samtec Inc. LSS-150-01-L-DV-A-K	100	Self Mating Non-Gendered Hermaphroditic	2	0.64 mm	0.025 in	Board Guide Pick and Place	6 mm 7 mm 9 mm	Gold	10 Áin	0.25 Ám	0.169 in	4.3 mm	Surface Mount
Samtec Inc. LSS-150-03-F-DV-A-TR	100	Self Mating Non-Gendered Hermaphroditic	2	0.64 mm	0.025 in	Board Guide	7 mm 8 mm 10 mm	Gold	3 Áin	0.076 Ám	0.209 in	5.3 mm	Surface Mount
Samtec Inc. LSS-150-01-F-DV-A-TR	100	Self Mating Non-Gendered Hermaphroditic	2	0.64 mm	0.025 in	Board Guide	6 mm 7 mm 9 mm	Gold	3 Áin	0.076 Ám	0.169 in	4.3 mm	Surface Mount
Samtec Inc. LSS-150-03-L-DV-A-K-TR	100	Self Mating Non-Gendered Hermaphroditic	2	0.64 mm	0.025 in	Board Guide Pick and Place	7 mm 8 mm 10 mm	Gold	10 Áin	0.25 Ám	0.209 in	5.3 mm	Surface Mount
Samtec Inc. LSS-150-02-F-DV-A-K	100	Self Mating Non-Gendered Hermaphroditic	2	0.64 mm	0.025 in	Board Guide Pick and Place	9 mm 10 mm 12 mm	Gold	3 Áin	0.076 Ám			Surface Mount	0.287 in	7.3 mm
