R123314000

Active

Radiall USA, Inc.

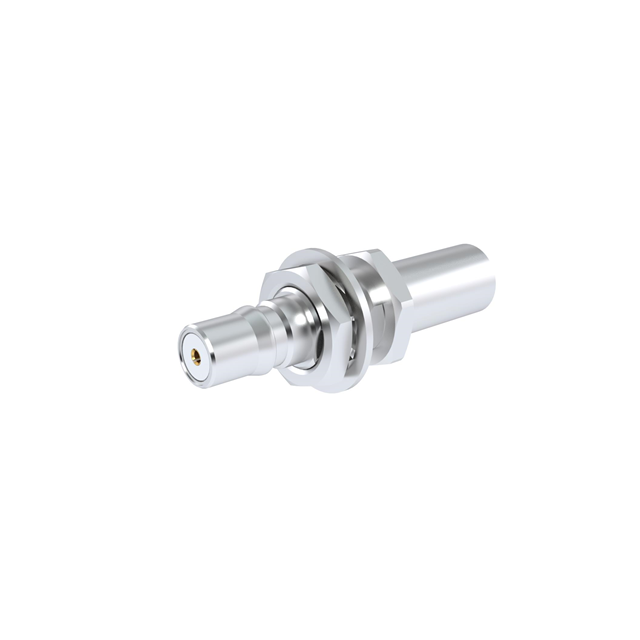

QMA / STRAIGHT BULKHEAD JACK CRI

Deep-Dive with AI

Search across all available documentation for this part.

R123314000

Active

Radiall USA, Inc.

QMA / STRAIGHT BULKHEAD JACK CRI

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R123314000

Body Finish	White Bronze
Body Material	Brass
Cable Group	141
Cable Group	RG-58
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp
Voltage Rating	335 V

R12331 Series

Part	Number of Ports	Mounting Feature	Shield Termination	Center Contact Material	Body Finish	Contact Termination	Dielectric Material	Insertion Loss	Impedance	Fastening Type	Voltage Rating	Frequency - Max [Max]	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Cable Group	Center Contact Plating	Connector Type	Cable Group
Radiall USA, Inc. R123312000W	1	Bulkhead - Front Side Nut	Crimp	Beryllium Copper	White Bronze	Crimp	Polytetrafluoroethylene (PTFE)	0.25 dB	50 Ohms	Snap-On	250 VDC	6000 MHz	Brass	-40 °C	105 ░C	Silver	316 RG-188	Gold	Female Socket Jack
Radiall USA, Inc. R123315000	1	Bulkhead - Front Side Nut	Crimp	Beryllium Copper	White Bronze	Crimp	Polytetrafluoroethylene (PTFE)		50 Ohms	Snap-On	335 V	6000 MHz	Brass	-40 °C	105 ░C	Silver	223 400 RG-142	Gold	Female Socket Jack
Radiall USA, Inc. R123315000W	1	Bulkhead - Front Side Nut	Crimp	Beryllium Copper	White Bronze	Crimp	Polytetrafluoroethylene (PTFE)		50 Ohms	Snap-On	335 V	6000 MHz	Brass	-40 °C	105 ░C	Silver	223 400 RG-142	Gold	Female Socket Jack
Radiall USA, Inc. R123312000	1	Bulkhead - Front Side Nut	Crimp	Beryllium Copper	White Bronze	Crimp	Polytetrafluoroethylene (PTFE)	0.25 dB	50 Ohms	Snap-On	250 VDC	6000 MHz	Brass	-40 °C	105 ░C	Silver	316 RG-188	Gold	Female Socket Jack
Radiall USA, Inc. R123314000	1	Bulkhead - Front Side Nut	Crimp	Beryllium Copper	White Bronze	Crimp	Polytetrafluoroethylene (PTFE)		50 Ohms	Snap-On	335 V	6000 MHz	Brass	-40 °C	105 ░C	Silver	RG-58	Gold	Female Socket Jack	141
Radiall USA, Inc. R123313000W	1	Bulkhead - Front Side Nut	Crimp	Beryllium Copper	White Bronze	Crimp	Polytetrafluoroethylene (PTFE)		50 Ohms	Snap-On	250 VDC	6000 MHz	Brass	-40 °C	105 ░C	Silver	RG-316 Double Braid	Gold	Female Socket Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 19.17

Description

General part information

R12331 Series

QMA Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
