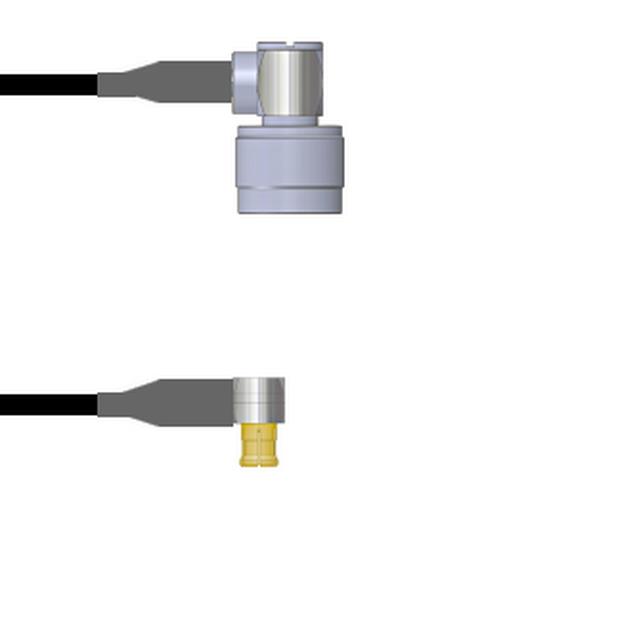

Q-2C01A0003024i

Active

Amphenol Custom Cable

COAX CBL MCX TO N-TYPE 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2C01A0003024i

Active

Amphenol Custom Cable

COAX CBL MCX TO N-TYPE 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2C01A0003024i

1st Connector	Right Angle, MCX Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms
Style	MCX to N-Type

Q-2C01A0 Series

Part	1st Contact Gender	Color	2nd Connector	Frequency - Max [Max]	Cable Type	Style	2nd Contact Gender	1st Connector	2nd Connector Mounting Type	1st Connector Mounting Type	Overall Impedance	Length	Length	Features	Length [x]	Length [x]	Length [x]	Length
Amphenol Custom Cable Q-2C01A0005036i	Male	Copper	N-Type Plug Right Angle	6000 MHz	RG-316	MCX to N-Type	Male	MCX Plug Right Angle	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	91.44 cm	36 in	Shielded
Amphenol Custom Cable Q-2C01A0003.25M	Male	Black	N-Type Plug Right Angle	6000 MHz	RG-174	MCX to N-Type	Male	MCX Plug Right Angle	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms			Shielded	9.843 "	250 mm
Amphenol Custom Cable Q-2C01A0005006i	Male	Copper	N-Type Plug Right Angle	6000 MHz	RG-316	MCX to N-Type	Male	MCX Plug Right Angle	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	152.4 mm	6 in	Shielded
Amphenol Custom Cable Q-2C01A0005009i	Male	Copper	N-Type Plug Right Angle	6000 MHz	RG-316	MCX to N-Type	Male	MCX Plug Right Angle	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	228.6 mm	9 "	Shielded
Amphenol Custom Cable Q-2C01A0005018i	Male	Copper	N-Type Plug Right Angle	6000 MHz	RG-316	MCX to N-Type	Male	MCX Plug Right Angle	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms			Shielded		457.2 mm	457.2 mm
Amphenol Custom Cable Q-2C01A0003024i	Male	Black	N-Type Plug Right Angle	6000 MHz	RG-174	MCX to N-Type	Male	MCX Plug Right Angle	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	609.6 mm	24 "	Shielded
Amphenol Custom Cable Q-2C01A0005001M	Male	Copper	N-Type Plug Right Angle	6000 MHz	RG-316	MCX to N-Type	Male	MCX Plug Right Angle	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	1 m	39.4 in	Shielded				3.3 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 66.59
		25	$ 65.30
		50	$ 64.01
		100	$ 62.72
		250	$ 61.43

Description

General part information

Q-2C01A0 Series

Cable Assembly Coaxial MCX to N-Type RG-174 24.00" (609.60mm)

Documents

Technical documentation and resources

No documents available
