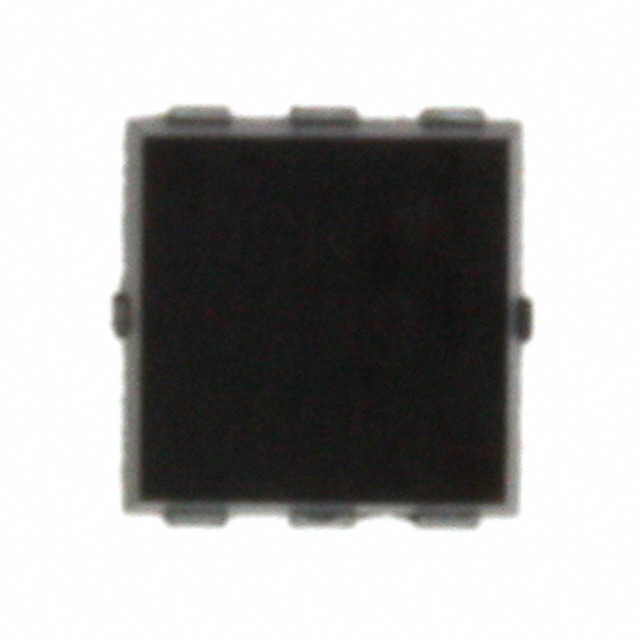

LX13043CLD
ObsoleteMicrosemi Corporation
IC REG LINEAR 3.3V 1A 6DFN
Deep-Dive with AI
Search across all available documentation for this part.
LX13043CLD
ObsoleteMicrosemi Corporation
IC REG LINEAR 3.3V 1A 6DFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LX13043CLD |
|---|---|
| Current - Output | 1 A |
| Current - Quiescent (Iq) | 3.4 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | 0 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | 6-VDFN Exposed Pad |
| PSRR | 40 dB |
| Supplier Device Package | 6-DFN (3x3) |
| Voltage - Input (Max) [Max] | 10 V |
| Voltage - Output (Min/Fixed) | 3.3 V |
| Voltage Dropout (Max) [Max] | 1.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LX13043 Series
Linear Voltage Regulator IC Positive Fixed 1 Output 1A 6-DFN (3x3)
Documents
Technical documentation and resources
No documents available
