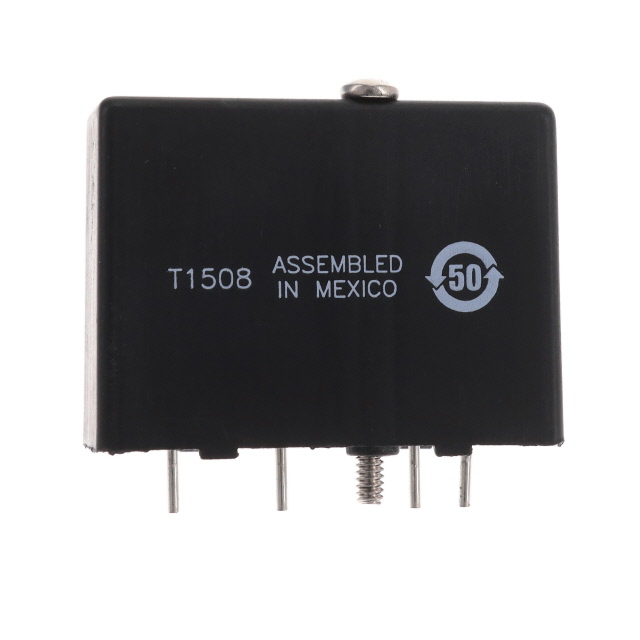

OAC-5H
ActiveTE Connectivity Potter & Brumfield Relays
AC OUTPUT MODULE 5A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OAC-5H
ActiveTE Connectivity Potter & Brumfield Relays
AC OUTPUT MODULE 5A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OAC-5H |
|---|---|
| Color | Black |
| Current - Input | 20 mA |
| Current - Output | 5 A |
| Features | Hold Down Screw |
| Style | Standard |
| Turn Off Time | 8.33 ms |
| Turn On Time | 8.33 ms |
| Type | AC Output Module |
| Voltage - Input | 5 VDC |
| Voltage - Output [Max] | 280 VAC |
| Voltage - Output [Min] | 24 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 34.41 | |
| 10 | $ 30.06 | |||
| 25 | $ 28.48 | |||
| 50 | $ 27.35 | |||
| 100 | $ 26.26 | |||
| 250 | $ 24.88 | |||
Description
General part information
OAC Series
AC Output Module Output Module 5A 24 ~ 280VAC Output 5VDC Supply
