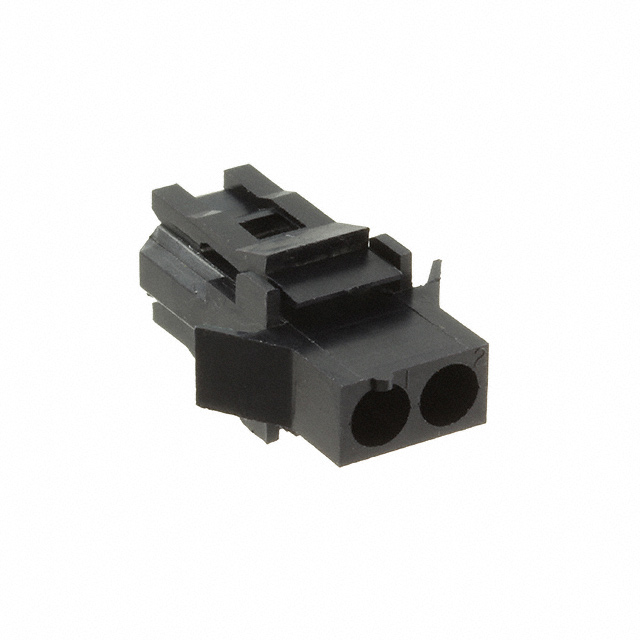

Specification	TST02RA00

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp and Solder, Crimp, Solder
Contact Type	Male or Female, Male, Female
Fastening Type	Latch Holder
Insulation Material	Nylon, Polyamide (PA)
Mounting Type	Panel Mount, Snap-In
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch	5.08 mm

TST02 Series

Part	Number of Positions Loaded	Mounting Type	Number of Positions	Connector Type	Insulation Material	Number of Rows	Contact Type	Termination	Contact Finish - Mating	Pitch - Mating	Features	Insulation Color	Material Flammability Rating	Shrouding	Voltage Rating	Fastening Type	Style	Operating Temperature (Min)	Operating Temperature (Max)	Contact Shape	Current Rating	Contact Length - Post	Insulation Height	Applications	Contact Finish Thickness - Mating	Pitch	Contact Termination	Color	Note
ITT Cannon, LLC TST02RB05T	All	Through Hole	2	Receptacle	Nylon Polyamide (PA)	1	Male Pin	Solder	Tin	0.2 in	Mounting Flange	Black	UL94 V-0	Unshrouded	250 V	Latch Holder	Board Cable/Wire	-40 °C	105 °C	Circular	13 A	0.224 in	0.531 in	Automotive Industrial
ITT Cannon, LLC TST02RB02T	All	Through Hole	2	Receptacle	Nylon Polyamide (PA)	1	Female Socket	Solder	Tin	0.2 in	Mounting Flange	Black	UL94 V-0			Latch Holder	Board Board or Cable	-40 °C	105 °C	Circular		0.224 in	0.531 in	Automotive General Purpose
ITT Cannon, LLC TST02RB02Z	All	Through Hole	2	Receptacle	Nylon Polyamide (PA)	1	Female Socket	Solder	Gold	0.2 in	Mounting Flange	Black	UL94 V-0			Latch Holder	Board Board or Cable	-40 °C	105 °C	Circular		0.224 in	0.531 in	Automotive General Purpose	Flash
ITT Cannon, LLC TST02RA00		Panel Mount Snap-In	2	Receptacle	Nylon Polyamide (PA)	1	Female Male Male or Female									Latch Holder		-55 °C	105 °C							5.08 mm	Crimp Crimp and Solder Solder	Black	Contacts Not Included
