786860-7

Obsolete

TE Connectivity AMP Connectors

CONN D-TYPE RCPT 68POS IDC

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN D-TYPE RCPT 68POS IDC

Technical Specifications

Parameters and characteristics for this part

Specification	786860-7

Color	Black
Connector Style	D-Type
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
Contact Type	Signal
Dielectric Material	Polyester
Features	Shielded
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	68
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [x]	0.05
Shell Size, Connector Layout [y]	0.1
Termination	IDC, Discrete Wire
Voltage Rating	30 VDC

CONN D-TYPE RCPT 68POS IDC

Part	Contact Material	Dielectric Material	Number of Rows	Shell Material, Finish	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [y]	Mounting Type	Features	Connector Style	Number of Positions	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Voltage Rating	Material Flammability Rating	Connector Type	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Color
TE Connectivity AMP Connectors 786860-7	Phosphor Bronze	Polyester	2	Nickel Plated, Steel	0.05	0.1	Free Hanging (In-Line)	Shielded	D-Type	68	Signal	0.76 Ám	30 Áin	Gold	30 VDC	UL94 V-0	Receptacle, Female Sockets	Discrete Wire, IDC	105 ░C	-55 °C	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

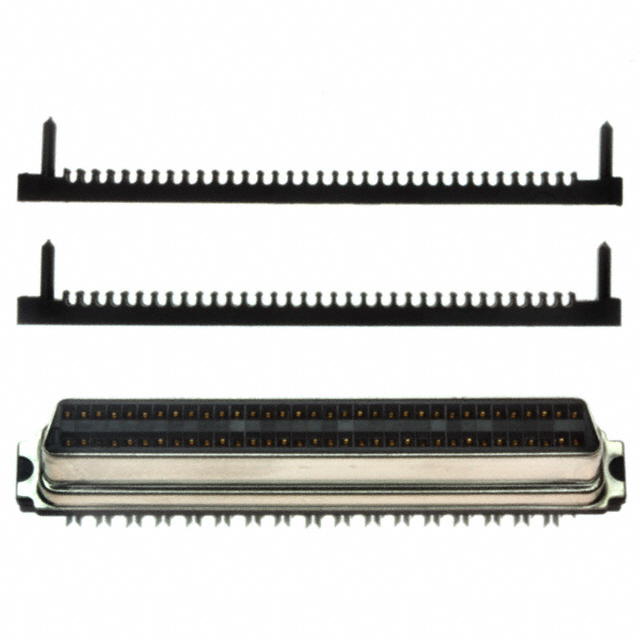

68 Position D-Type Receptacle, Female Sockets Connector
