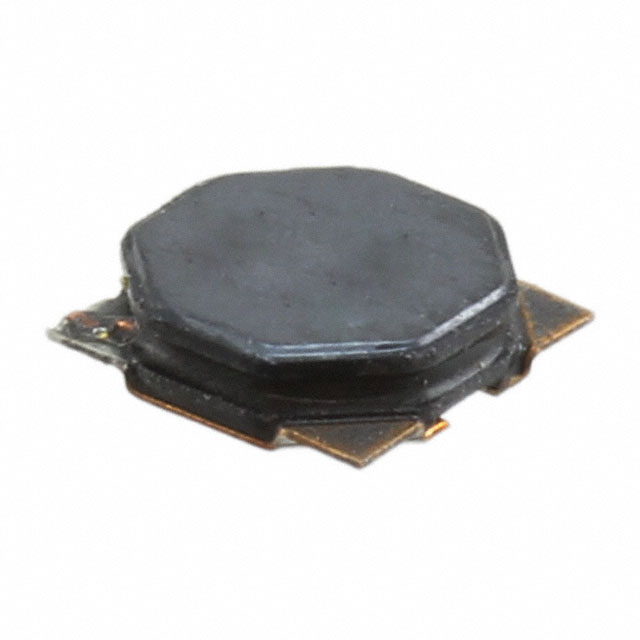

SRN4012-1R0M
ObsoleteBourns Inc.
FIXED IND 1UH 2.2A 45 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SRN4012-1R0M
ObsoleteBourns Inc.
FIXED IND 1UH 2.2A 45 MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SRN4012-1R0M |
|---|---|
| Current - Saturation (Isat) | 2.8 A |
| Current Rating (Amps) | 2.2 A |
| DC Resistance (DCR) | 45 mOhm |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Inductance | 1 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 4 mm |
| Size / Dimension [x] | 0.157 " |
| Size / Dimension [y] | 0.157 in |
| Size / Dimension [y] | 4 mm |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SRN4012 Series
1 µH Shielded Drum Core, Wirewound Inductor 2.2 A 45mOhm Max Nonstandard
