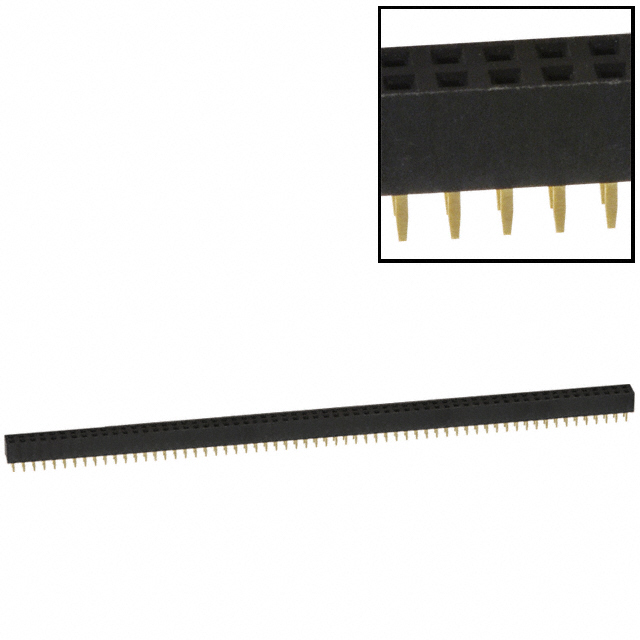

NPPN402AFCN-RC

Active

Sullins Connector Solutions

BOARD CONNECTOR, 80 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, SOLDER TERMINAL, ROHS COMPLIANT

Deep-Dive with AI

Search across all available documentation for this part.

NPPN402AFCN-RC

Active

Sullins Connector Solutions

BOARD CONNECTOR, 80 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, SOLDER TERMINAL, ROHS COMPLIANT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NPPN402AFCN-RC

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.094 in
Contact Length - Post	2.4 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.3 mm
Insulation Height	0.169 "
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder

NPPN402 Series

Part	Contact Material	Current Rating (Amps)	Contact Shape	Fastening Type	Features	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Insulation Color	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish - Mating	Contact Finish - Post	Contact Finish Thickness - Mating	Number of Positions Loaded	Termination	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Contact Finish Thickness - Post	Number of Rows	Insulation Material	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height
Sullins Connector Solutions NPPN402GFNP-RC	Phosphor Bronze	2 A	Square	Push-Pull	Board Guide	0.079 in	2 mm	80	Black	Female Socket	-40 °C	105 ░C	Surface Mount	Gold	Gold	Flash	All	Solder	UL94 V-0	0.079 in	2 mm	Header Top or Bottom Entry	Flash	2	Nylon 6T Polyamide (PA6T)
Sullins Connector Solutions NPPN402FJFN-RC	Phosphor Bronze		Square	Push-Pull		0.079 in	2 mm	80	Black	Female Socket	-40 °C	105 ░C	Through Hole Right Angle	Gold	Gold	Flash	All	Solder	UL94 V-0	0.079 in	2 mm	Header	Flash	2	Nylon 6T Polyamide (PA6T)	0.118 in	3 mm	0.191 in	4.85 mm
Sullins Connector Solutions NPPN402FFKS-RC	Phosphor Bronze	2 A	Square	Push-Pull		0.079 in	2 mm	80	Black	Female Socket	-40 °C	105 ░C	Surface Mount	Gold	Gold	Flash	All	Solder	UL94 V-0	0.079 in	2 mm	Header	Flash	2	Nylon 6T Polyamide (PA6T)			0.173 in	4.4 mm
Sullins Connector Solutions NPPN402AFCN-RC	Phosphor Bronze		Square	Push-Pull		0.079 in	2 mm	80	Black	Female Socket	-40 °C	105 ░C	Through Hole	Gold	Gold	Flash	All	Solder	UL94 V-0	0.079 in	2 mm	Header	Flash	2	Nylon 6T Polyamide (PA6T)	0.094 in	2.4 mm	0.169 "	4.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.50
		14	$ 4.08
		105	$ 3.60
		504	$ 3.06
		1001	$ 2.61

Description

General part information

NPPN402 Series

80 Position Header Connector 0.079" (2.00mm) Through Hole Gold

Documents

Technical documentation and resources

No documents available
