HDBB-320-1-250

Active

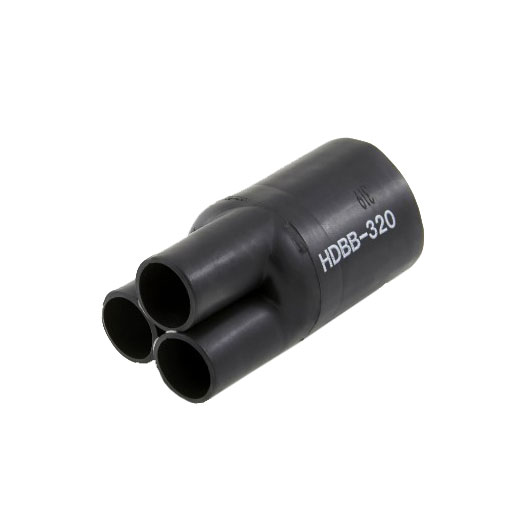

HEATSHRINK BOOT BREAKOUT 3:1 BLK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HDBB-320-1-250

Active

HEATSHRINK BOOT BREAKOUT 3:1 BLK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HDBB-320-1-250	HDBB Series

Color	Black	Black
Features	Adhesive Coating, Flame Retardant	Adhesive Coating, Flame Retardant
Large Diameter Recovered [diameter]	0.5 in	0.37 - 3 in
Large Diameter Recovered [diameter]	12.7 mm	9.4 - 76.2 mm
Large Diameter Supplied	1.2 in	1.2 - 5.25 in
Large Diameter Supplied	30.48 mm	30.48 - 133.35 mm
Large Diameter Supplied	-	0.8 - 3.2 in
Large Diameter Supplied	-	20.32 - 81.28 mm
Material	Polyolefin (PO), Semi-Rigid	Polyolefin (PO), Semi-Rigid
Shelf Life	60 Months	60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Small Diameter Recovered [diameter]	0.16 "	0.11 - 0.75 "
Small Diameter Recovered [diameter]	4.06 mm	2.79 - 19.05 mm
Small Diameter Supplied	12.7 mm	12.7 mm
Small Diameter Supplied	-	7.11 - 35.56 mm
Small Diameter Supplied [diameter]	0.5 in	0.28 - 1.4 in
Small Recovered Length	1 in	1 - 1.6 in
Small Recovered Length	25.4 mm	17.78 - 76.2 mm
Small Recovered Length	-	0.75 - 3 in
Small Recovered Length	-	1.2 in
Small Recovered Length	-	0.7 in
Total Length Recovered	-	68.58 - 228.6 mm
Total Length Recovered	-	2.7 - 9 in
Total Length Recovered [x]	3.3 in	3.3 - 5.1 in
Total Length Recovered [x]	83.82 mm	83.82 - 129.54 mm
Type	Boot, Transition - Breakout, 3:1	Boot, Transition - Breakout, 4:1, Boot, Transition - Breakout, 3:1, Boot, Transition - Breakout, 2:1

HDBB Series

HEATSHRINK BOOT BREAKOUT 4:1 BLK

Part	Features	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Type	Small Recovered Length [x]	Small Recovered Length	Large Diameter Supplied	Large Diameter Supplied	Material	Total Length Recovered	Total Length Recovered	Color	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Total Length Recovered [x]	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Small Recovered Length [custom]	Small Recovered Length [custom]	Total Length Recovered [x]	Small Recovered Length	Shelf Life Start	Shelf Life	Small Diameter Supplied
3M HDBB-430-1-250	Adhesive Coating, Flame Retardant	13.97 mm	0.55 "	3 in	76.2 mm	Boot, Transition - Breakout, 4:1	3 in	76.2 mm	133.35 mm	5.25 in	Polyolefin (PO), Semi-Rigid	228.6 mm	9 in	Black	1.35 in	34.29 mm
3M HDBB-325-1-250	Adhesive Coating, Flame Retardant	7.62 mm	0.3 in	0.9 "	22.86 mm	Boot, Transition - Breakout, 3:1		30.48 mm			Polyolefin (PO), Semi-Rigid	114.3 mm		Black	0.82 in	20.83 mm	4.5 in	1.7 in	43.18 mm	1.2 in
3M HDBB-205-1-250	Adhesive Coating, Flame Retardant	2.79 mm	0.11 "	0.37 in	9.4 mm	Boot, Transition - Breakout, 2:1		17.78 mm			Polyolefin (PO), Semi-Rigid	68.58 mm	2.7 in	Black	0.33 in	8.38 mm		0.8 "	20.32 mm		0.7 in
3M HDBB-220-1-250	Adhesive Coating, Flame Retardant	7.62 mm	0.3 in	0.9 "	22.86 mm	Boot, Transition - Breakout, 2:1		30.48 mm	48.26 mm		Polyolefin (PO), Semi-Rigid			Black	0.75 in	19.05 mm	4.2 in	1.9 in		1.2 in		106.68 mm
3M HDBB-405-1-250	Adhesive Coating, Flame Retardant	2.79 mm	0.11 "	0.43 in	10.92 mm	Boot, Transition - Breakout, 4:1	0.75 in	19.05 mm			Polyolefin (PO), Semi-Rigid	69.85 mm	2.75 in	Black	0.28 in	7.11 mm		0.9 in	22.86 mm
3M HDBB-335-1-250	Adhesive Coating, Flame Retardant	12.7 mm	0.5 "	1.4 in	35.56 mm	Boot, Transition - Breakout, 3:1		40.64 mm			Polyolefin (PO), Semi-Rigid			Black	1.25 in	31.75 mm	5.1 in	2.4 in	60.96 mm			129.54 mm	1.6 in
3M HDBB-340-1-250	Adhesive Coating, Flame Retardant	19.05 mm	0.75 "	2 in	50.8 mm	Boot, Transition - Breakout, 3:1		40.64 mm			Polyolefin (PO), Semi-Rigid			Black	1.4 in	35.56 mm	5.1 in	3.2 in	81.28 mm			129.54 mm	1.6 in
3M HDBB-320-1-250	Adhesive Coating, Flame Retardant	4.06 mm	0.16 "	0.5 in	12.7 mm	Boot, Transition - Breakout, 3:1		25.4 mm	30.48 mm	1.2 in	Polyolefin (PO), Semi-Rigid			Black	0.5 in		3.3 in					83.82 mm	1 in	Date of Manufacture	60 Months	12.7 mm
