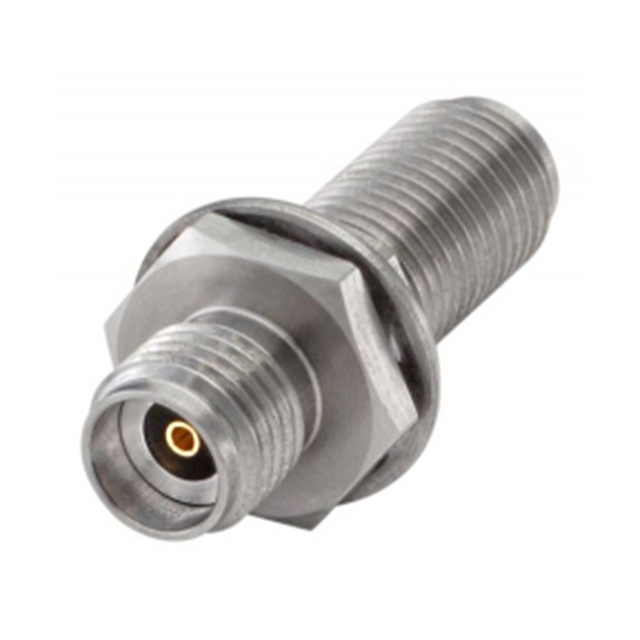

02K621-K00S3

Active

Rosenberger

PRECISION 2.92 ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

PRECISION 2.92 ADAPTER

Technical Specifications

Parameters and characteristics for this part

PRECISION 2.92 ADAPTER

Part	Operating Temperature [Max]	Operating Temperature [Min]	Adapter Type	Style	Convert From (Adapter End)	Convert From (Adapter End)	Frequency - Max [Max]	Center Contact Material	Impedance	Mating Cycles	Convert To (Adapter End)	Convert To (Adapter End)	Center Gender	Body Material	Dielectric Material	Insertion Loss	Conversion Type	Mounting Feature	Adapter Series	Center Contact Plating
Rosenberger 02K621-K00S3	85 °C	-40 °C	Jack to Jack	Straight	2.92 mm	Jack, Female Socket, OS-2.9	40 GHz	Beryllium Copper	50 Ohms	500	2.92 mm	OS-2.9 Jack, Female Socket	Female to Female	Stainless Steel	Polystyrene (PS)	0.25 dB	Same Series	Bulkhead	RPC-2.92 to RPC-2.92	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 2.92mm (OS-2.9) Jack, Female Socket To 2.92mm (OS-2.9) Jack, Female Socket 50 Ohms
