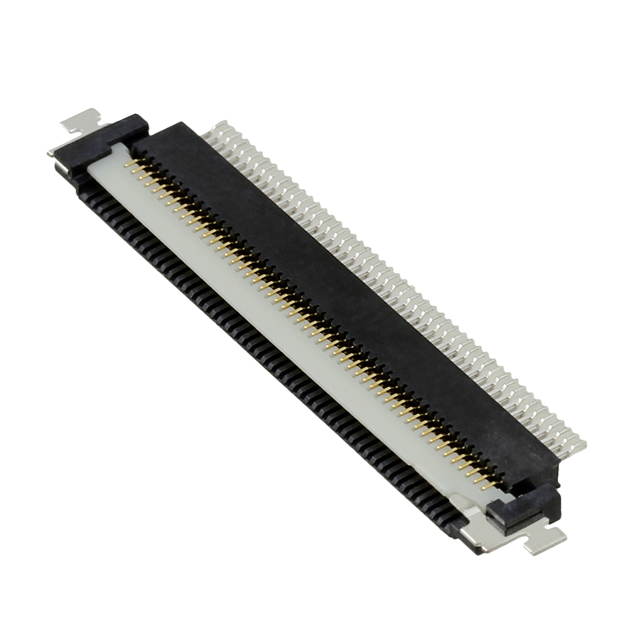

FA5B050HP1

Obsolete

JAE Electronics

CONN FPC BOTTOM 50POS 0.5MM SMD

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN FPC BOTTOM 50POS 0.5MM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	FA5B050HP1

Actuator Color	White
Actuator Material	Glass Filled, Polyamide (PA), Nylon
Cable End Type	Tapered
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	0.8 A
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC
Housing Color	Black
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Board Edge, Cutout
Number of Positions	50
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

Part	Flat Flex Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Number of Positions	Contact Finish	Pitch [x]	Pitch [x]	Termination	Mating Cycles	Cable End Type	Features	Material Flammability Rating	Mounting Type	Housing Color	Housing Material	Connector/Contact Type	Contact Material	FFC, FCB Thickness	Actuator Material	Locking Feature	Actuator Color	Current Rating (Amps)
JAE Electronics FA5B050HP1	FPC	85 °C	-40 °C	50 V	50	Gold	0.5 mm	0.02 in	Solder	20	Tapered	Solder Retention Zero Insertion Force (ZIF)	UL94 V-0	Board Edge Cutout	Black	Liquid Crystal Polymer (LCP) Glass Filled	Contacts Bottom	Copper Alloy	0.3 mm	Glass Filled Nylon Polyamide (PA)	Flip Lock	White	0.8 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

50 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Board Edge, Cutout
