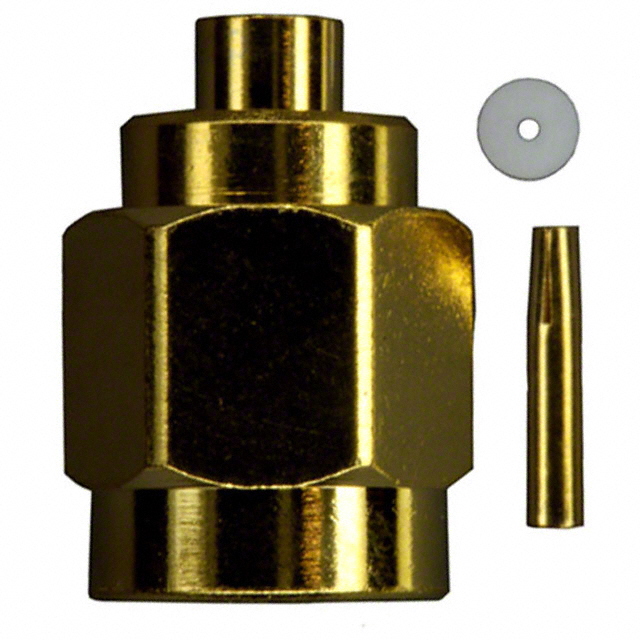

132101RP
ActiveAmphenol RF
CONN RPSMA PLUG STR 50OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
132101RP
ActiveAmphenol RF
CONN RPSMA PLUG STR 50OHM SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 132101RP |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | Semi Rigid, RG-405 |
| Cable Group [Max] | 0.086 in |
| Cable Group [Min] | 0.085 in |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | RP-SMA |
| Connector Type | Plug, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Includes | Insulator, Connector, Contact |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 375 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.95 | |
| 10 | $ 7.64 | |||
| 25 | $ 6.90 | |||
| 50 | $ 6.39 | |||
| 100 | $ 5.94 | |||
| 250 | $ 5.40 | |||
| 500 | $ 5.04 | |||
| 1000 | $ 4.71 | |||
Description
General part information
132101 Series
RP-SMA Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
Documents
Technical documentation and resources
No documents available
