2903688
ActivePhoenix Contact

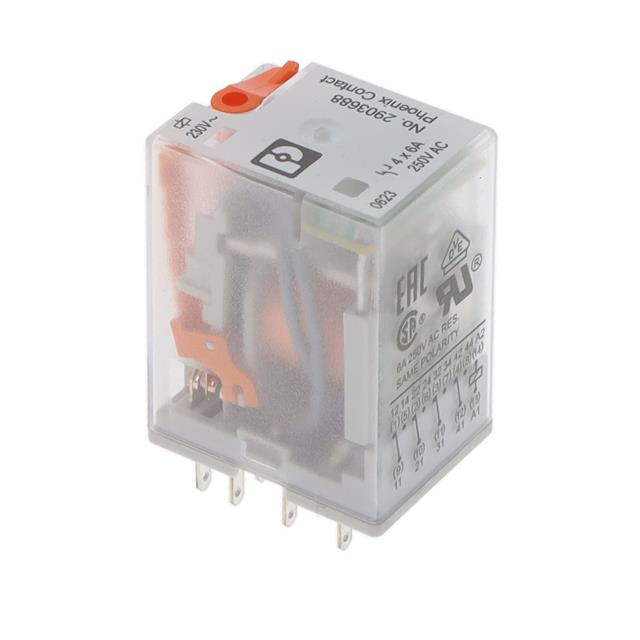

RELAY GEN PURPOSE 4PDT 6A 230V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2903688
ActivePhoenix Contact
RELAY GEN PURPOSE 4PDT 6A 230V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2903688 | 29036 Series |
|---|---|---|
| Approval Agency | VDE, UL, EAC, cULus | VDE, UL, EAC, cULus, UR, CSA, cURus, cUL |
| Coil Current | 6.5 mA | 4 - 116 mA |
| Coil Resistance | 35.39 kOhms | 2.2 - 571.4 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 230 VAC | 12 - 230 VAC |
| Contact Form | 4PDT (4 Form C) | DPDT (2 Form C), 3PDT (3 Form C), 4PDT (4 Form C) |
| Contact Material | Silver Nickel (AgNi) | Silver Nickel (AgNi), Gold (Au) |
| Contact Rating (Current) | 6 A | 6 - 16 A |
| Features | - | Lighted Indicator, Diode, Test Button, Mechanical Indicator |
| Load - Max Switching | - | 4000 - 7040 W |
| Mounting Type | Socketable | Socketable |
| Operate Time | 15 ms | 13 - 25 ms |
| Operating Temperature [Max] | 55 °C | 55 - 70 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 20 ms | 14 - 20 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | Plug In | Plug In, 8 Pin (Octal), Plug In, Plug In, 11 Pin (Octal) |
29036 Series
RELAY GEN PURPOSE DPDT 10A 230V
| Part | Coil Type | Release Time | Switching Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Operate Time | Relay Type | Coil Voltage | Termination Style | Contact Rating (Current) | Contact Form | Coil Resistance | Mounting Type | Coil Current | Approval Agency | Features | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2903692 | Non Latching | 20 ms | 250 VAC, 250 VDC | -40 °C | 55 °C | Silver Nickel (AgNi) | 15 ms | General Purpose | 230 VAC | Plug In, 8 Pin (Octal) | 10 A | DPDT (2 Form C) | 17.69 kOhms | Socketable | 13 mA | |||
Phoenix Contact 2903664 | Non Latching | 14 ms | 250 VAC, 250 VDC | -40 °C | 70 °C | Silver Nickel (AgNi) | 13 ms | General Purpose | 125 VDC | Plug In | 12 A | DPDT (2 Form C) | 16.2 kOhms | Socketable | 7.7 mA | cULus, EAC, UL, VDE | Diode, Lighted Indicator, Test Button | |
Phoenix Contact 2903690 | Non Latching | 20 ms | 250 VAC, 250 VDC | -40 °C | 55 °C | Silver Nickel (AgNi) | 15 ms | General Purpose | 24 VAC | Plug In, 8 Pin (Octal) | 10 A | DPDT (2 Form C) | 222 Ohms | Socketable | 108 mA | |||
Phoenix Contact 2903694 | Non Latching | 20 ms | 250 VAC, 250 VDC | -40 °C | 55 °C | Silver Nickel (AgNi) | 15 ms | General Purpose | 24 VAC | Plug In, 8 Pin (Octal) | 10 A | 3PDT (3 Form C) | 222 Ohms | Socketable | 108 mA | |||
Phoenix Contact 2903681 | Non Latching | 14 ms | 250 VAC, 250 VDC | -40 °C | 70 °C | Silver Nickel (AgNi) | 13 ms | General Purpose | 125 VDC | Plug In | 6 A | 4PDT (4 Form C) | 16.2 kOhms | Socketable | 7.7 mA | cULus, EAC, UL, VDE | Diode, Lighted Indicator, Test Button | |
Phoenix Contact 2903671 | Non Latching | 14 ms | 250 VAC, 250 VDC | -40 °C | 70 °C | Gold (Au), Silver Nickel (AgNi) | 13 ms | General Purpose | 48 VDC | Plug In | 6 A | 4PDT (4 Form C) | 2.2 kOhms | Socketable | 22 mA | cULus, EAC, UL, VDE | Diode, Lighted Indicator, Mechanical Indicator, Test Button | |
Phoenix Contact 2903691 | Non Latching | 20 ms | 250 VAC, 250 VDC | -40 °C | 55 °C | Silver Nickel (AgNi) | 15 ms | General Purpose | 120 VAC | Plug In, 8 Pin (Octal) | 10 A | DPDT (2 Form C) | 5.22 kOhms | Socketable | 23 mA | |||
Phoenix Contact 2903670 | Non Latching | 14 ms | 250 VAC, 250 VDC | -40 °C | 70 °C | Gold (Au), Silver Nickel (AgNi) | 13 ms | General Purpose | 24 VDC | Plug In | 6 A | 4PDT (4 Form C) | 571.4 Ohms | Socketable | 42 mA | cULus, EAC, UL, VDE | Diode, Lighted Indicator, Mechanical Indicator, Test Button | |
Phoenix Contact 2903660 | Non Latching | 14 ms | 250 VAC, 250 VDC | -40 °C | 70 °C | Silver Nickel (AgNi) | 13 ms | General Purpose | 24 VDC | Plug In | 12 A | DPDT (2 Form C) | 571 Ohms | Socketable | 42 mA | cULus, EAC, UL, VDE | Diode, Lighted Indicator, Mechanical Indicator, Test Button | |
Phoenix Contact 2903699 | Non Latching | 20 ms | -40 °C | 55 °C | Silver Nickel (AgNi) | 25 ms | General Purpose | 24 VAC | Plug In | 16 A | DPDT (2 Form C) | 207 Ohms | Socketable | 116 mA | CSA, cURus, EAC, UR | 4000 W, 7040 VA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 6.81 | |
Description
General part information
29036 Series
General Purpose Relay 4PDT (4 Form C) 230VAC Coil Socketable
