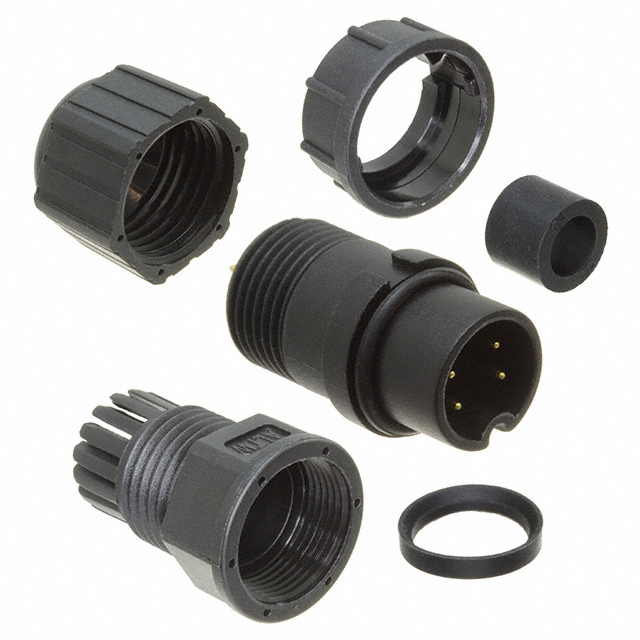

BD-04BFMA-LL7001

Active

Amphenol LTW

CONN PLUG MALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN PLUG MALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	BD-04BFMA-LL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [diameter]	4.5 mm, 6.5 mm
Cable Opening [diameter]	0.256 in, 0.177 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded

Part	Housing Color	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, MIL	Primary Material	Connector Type	Mounting Type	Contact Type	Features	Shielding	Note	Type	Insert Material	Ingress Protection	Orientation	Number of Positions	Backshell Material, Plating	Color	Shell Material	Cable Opening [diameter]	Cable Opening [diameter]	Contact Finish - Mating	Shell Size - Insert	Current Rating (Amps)	Contact Material	Fastening Type
Amphenol LTW BD-04BFMA-QL8AN0	Black	Circular	-40 °C	105 ░C	B	Plastic	Plug Housing	Free Hanging (In-Line)	Crimp	Backshell	Unshielded	Contacts Not Included	For Male Pins	Thermoplastic	IP68 - Dust Tight Waterproof	Keyed	4
Amphenol LTW BD-04BFMA-SL7001			-40 °C	105 ░C		Plastic	Male Pins Plug	Free Hanging (In-Line)		Backshell Coupling Nut	Unshielded			Polyamide (PA) Nylon Glass Filled	IP67 - Dust Tight Waterproof	Keyed	4	Nylon Polyamide (PA)	Black	Glass Filled Nylon Polyamide (PA)	4.5 mm 6.5 mm	0.177 in 0.256 in	Gold	B	5 A	Copper Alloy
Amphenol LTW BD-04BFMA-LL7001			-40 °C	105 ░C		Plastic	Male Pins Plug	Free Hanging (In-Line)		Backshell Coupling Nut	Unshielded			Polyamide (PA) Nylon Glass Filled	IP67 - Dust Tight Waterproof	Keyed	4	Nylon Polyamide (PA)	Black	Glass Filled Nylon Polyamide (PA)	4.5 mm 6.5 mm	0.177 in 0.256 in	Gold	B	5 A	Copper Alloy	Bayonet Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Male Pins Solder Cup
