45-2P02.1E10.000

Active

EAO

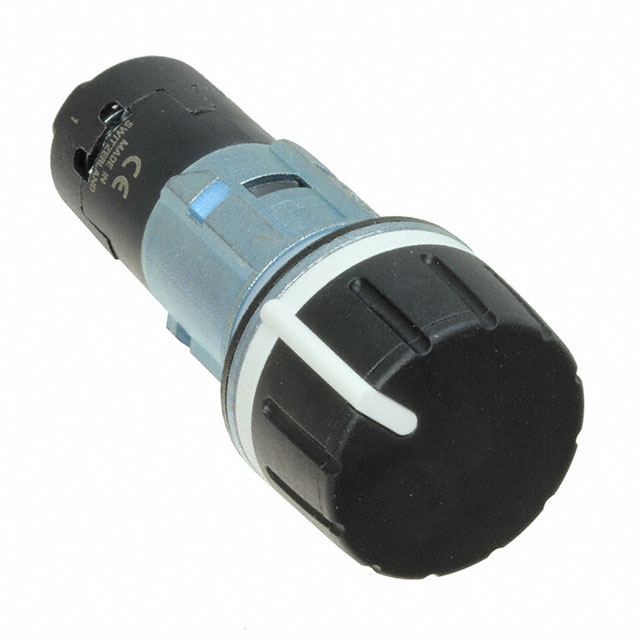

SWITCH ACTUATORS POTENTIOMETER BLACK ROUND LEVER 10 KOHM FRONT/HOUSING PLASTIC

Search across all available documentation for this part.

Active

EAO

SWITCH ACTUATORS POTENTIOMETER BLACK ROUND LEVER 10 KOHM FRONT/HOUSING PLASTIC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	45-2P02.1E10.000	45-2P02 Series

Actuator Length [z]	19.4 mm	19.4 mm
Actuator Length [z]	0.764 in	0.764 in
Actuator Type	Knob	Knob
Adjustment Type	Top Adjustment	Top Adjustment
Built in Switch	False	False
Number of Gangs	1	1
Number of Turns	1	1
Power (Watts)	0.5 W	0.5 W
Power (Watts)	0.5 W	0.5 W
Resistance (Ohms)	10k	10k
Resistive Material	Conductive Plastic	Conductive Plastic
Rotation	280 °	280 °
Taper	Linear	Linear
Termination Style	Screw Terminal, Pressure Plate	Screw Terminal, Pressure Plate

POT 10K OHM 1/2W PLASTIC LINEAR

Part	Resistive Material	Actuator Length [z]	Actuator Length [z]	Built in Switch	Adjustment Type	Power (Watts)	Power (Watts)	Taper	Rotation	Termination Style	Number of Gangs	Actuator Type	Number of Turns	Resistance (Ohms)
EAO 45-2P02.2E10.000	Conductive Plastic	19.4 mm	0.764 in		Top Adjustment	0.5 W	0.5 W	Linear	280 °	Pressure Plate, Screw Terminal	1	Knob	1	10k
EAO 45-2P02.1E10.000	Conductive Plastic	19.4 mm	0.764 in		Top Adjustment	0.5 W	0.5 W	Linear	280 °	Pressure Plate, Screw Terminal	1	Knob	1	10k

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.5W, 1/2W Screw Terminal, Pressure Plate
