VNQ9025AJTR
ActiveQUAD CHANNEL HIGH-SIDE DRIVER WITH CURRENT SENSE ANALOG FEEDBACK FOR AUTOMOTIVE APPLICATIONS
Deep-Dive with AI
Search across all available documentation for this part.
VNQ9025AJTR
ActiveQUAD CHANNEL HIGH-SIDE DRIVER WITH CURRENT SENSE ANALOG FEEDBACK FOR AUTOMOTIVE APPLICATIONS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VNQ9025AJTR | VNQ9025AJ Series |
|---|---|---|
| - | - | |
| Current - Output (Max) [Max] | 30 A | 30 A |
| Fault Protection | Open Load Detect, Over Temperature, Reverse Battery, UVLO, Current Limiting (Adjustable), Over Voltage, Short Circuit | Open Load Detect, Over Temperature, Reverse Battery, UVLO, Current Limiting (Adjustable), Over Voltage, Short Circuit |
| Features | Status Flag | Status Flag |
| Input Type | Non-Inverting | Non-Inverting |
| Interface | Logic | Logic |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 4 | 4 |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | High Side | High Side |
| Output Type | N-Channel | N-Channel |
| Package / Case | 0.154 in | 0.154 in |
| Package / Case | 3.9 mm | 3.9 mm |

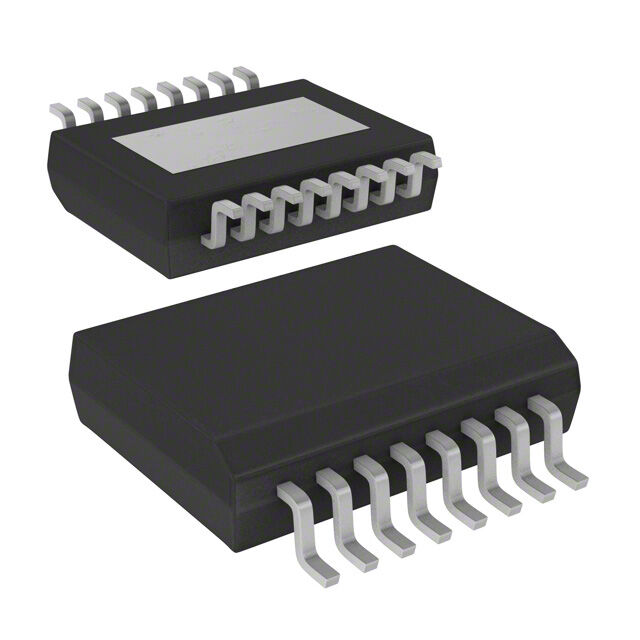

| Package / Case | 16-PowerLFSOP | 16-PowerLFSOP |
| Ratio - Input:Output [custom] | 1:1 | 1:1 |
| Rds On (Typ) | 25 mOhm | 25 mOhm |
| Supplier Device Package | PowerSSO-16 | PowerSSO-16 |
| Switch Type | General Purpose | General Purpose |
| Voltage - Load [Max] | 28 V | 28 V |
| Voltage - Load [Min] | 4 V | 4 V |
| Voltage - Supply (Vcc/Vdd) [Max] | 28 V | 28 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 4 V | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.89 | |
| 10 | $ 2.56 | |||
| 25 | $ 2.21 | |||
| 100 | $ 1.82 | |||
| 250 | $ 1.63 | |||
| 500 | $ 1.52 | |||
| 1000 | $ 1.42 | |||
| Digi-Reel® | 1 | $ 3.89 | ||
| 10 | $ 2.56 | |||
| 25 | $ 2.21 | |||
| 100 | $ 1.82 | |||
| 250 | $ 1.63 | |||
| 500 | $ 1.52 | |||
| 1000 | $ 1.42 | |||
| Tape & Reel (TR) | 2500 | $ 1.32 | ||
| 5000 | $ 1.25 | |||
| 7500 | $ 1.23 | |||
VNQ9025AJ Series
Quad channel high-side driver with Current Sense analog feedback for automotive applications
| Part | Input Type | Output Configuration | Supplier Device Package | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Fault Protection | Number of Outputs | Switch Type | Features | Output Type | Current - Output (Max) [Max] | Ratio - Input:Output [custom] | Interface | Package / Case | Package / Case | Package / Case | Rds On (Typ) | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Load [Min] | Voltage - Load [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics VNQ9025AJTR | ||||||||||||||||||||||
STMicroelectronics VNQ9025AJTR | Non-Inverting | High Side | PowerSSO-16 | Surface Mount | 150 °C | -40 °C | Current Limiting (Adjustable), Open Load Detect, Over Temperature, Over Voltage, Reverse Battery, Short Circuit, UVLO | 4 | General Purpose | Status Flag | N-Channel | 30 A | 1:1 | Logic | 0.154 in | 3.9 mm | 16-PowerLFSOP | 25 mOhm | 28 V | 4 V | 4 V | 28 V |
Description
General part information
VNQ9025AJ Series
The VNQ9025AJ is a quad channel high-side driver manufactured using ST proprietary VIPower M0-9 technology and housed in PowerSSO-16 package. The device is designed to drive 12 V automotive grounded loads through a 3 V and 5 V CMOS-compatible interface, providing protection and diagnostics.
The device integrates advanced protective functions such as load current limitation, overload active management by power limitation and overtemperature shutdown with configurable latch-off.
A FaultRST pin unlatches the output in case of fault or disables the latch-off functionality.
