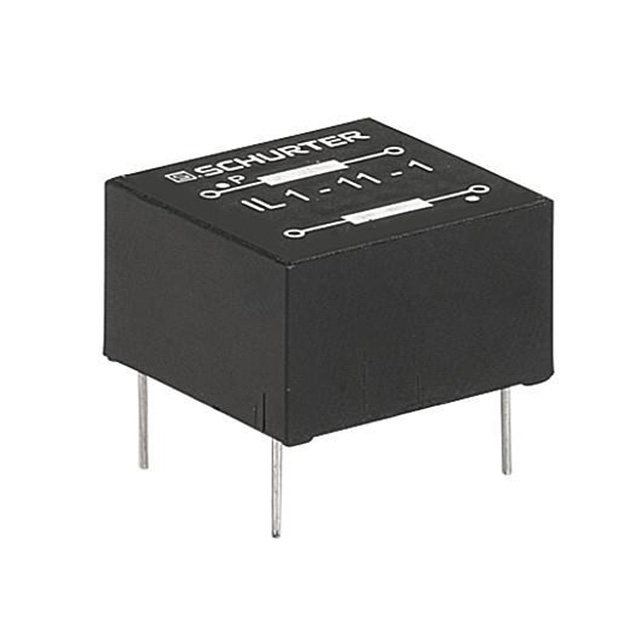

Pulse Transformers IL1 PULSE TRANSFORMR THT 0.25A
Technical documentation and resources
Parameters and characteristics for this part
| Specification | IL-21-0001 |
|---|---|
| ET (Volt-Time) | 300 VµS |
| Height - Seated (Max) [Max] [z] | 0.571 in |
| Height - Seated (Max) [Max] [z] | 14.5 mm |
| Inductance | 3 mH |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Size / Dimension [x] | 28 mm |
| Size / Dimension [x] | 1.102 in |
| Size / Dimension [y] | 0.906 in |
| Size / Dimension [y] | 23 mm |
| Transformer Type | SCR and Triac Trigger (Encapsulated) |
| Turns Ratio - Primary:Secondary | 1:1 |
| Weight | 15.1 g |
| Weight | 0.53 oz |
Pulse Transformers IL1 PULSE TRANSFORMR THT 0.25A
| Part | Inductance | Weight | Weight | Mounting Type | Turns Ratio - Primary:Secondary | ET (Volt-Time) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Transformer Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. IL-21-0001 | 3 mH | 15.1 g | 0.53 oz | Through Hole | 1:1 | 300 VµS | 0.571 in | 14.5 mm | 70 °C | -25 °C | 0.906 in | 23 mm | 28 mm | 1.102 in | SCR and Triac Trigger (Encapsulated) |
