2302-2-01-44-00-00-07-0
ActiveMill-Max Manufacturing Corp.

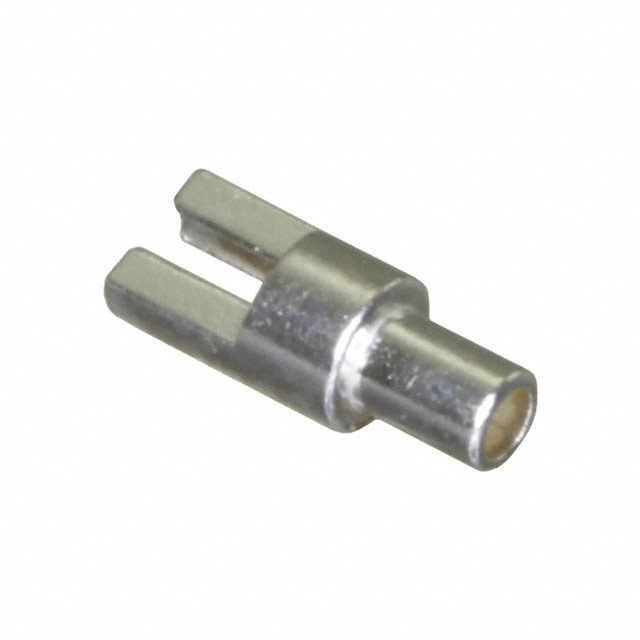

CONN PC PIN CIRC 0.094DIA SILVER
Deep-Dive with AI
Search across all available documentation for this part.
2302-2-01-44-00-00-07-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.094DIA SILVER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2302-2-01-44-00-00-07-0 |
|---|---|
| Board Thickness | 0.062 in |
| Board Thickness | 1.57 mm |
| Contact Finish | Silver |
| Contact Finish Thickness | 300 µin |
| Contact Finish Thickness | 7.62 µm |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 2.39 mm |
| Flange Diameter [diameter] | 0.094 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 3.96 mm |
| Length - Above Flange [x] | 0.156 in |
| Length - Below Flange [x] | 2.13 mm |
| Length - Below Flange [x] | 0.084 in |
| Length - Overall | 6.1 mm |
| Length - Overall [x] | 0.24 " |
| Mounting Hole Diameter [diameter] | 1.7 mm |
| Mounting Hole Diameter [diameter] | 0.067 " |
| Mounting Type | Through Hole |
| Terminal Style | Single End, Slotted |
| Terminal Type | PC Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.50 | |
| 10 | $ 0.43 | |||
| 25 | $ 0.40 | |||
| 50 | $ 0.37 | |||
| 100 | $ 0.36 | |||
| 250 | $ 0.33 | |||
| 500 | $ 0.31 | |||
| 1000 | $ 0.27 | |||
Description
General part information
2302-2 Series
PC Pin Terminal Connector Through Hole Silver 0.094" (2.39mm) Dia
Documents
Technical documentation and resources
No documents available
