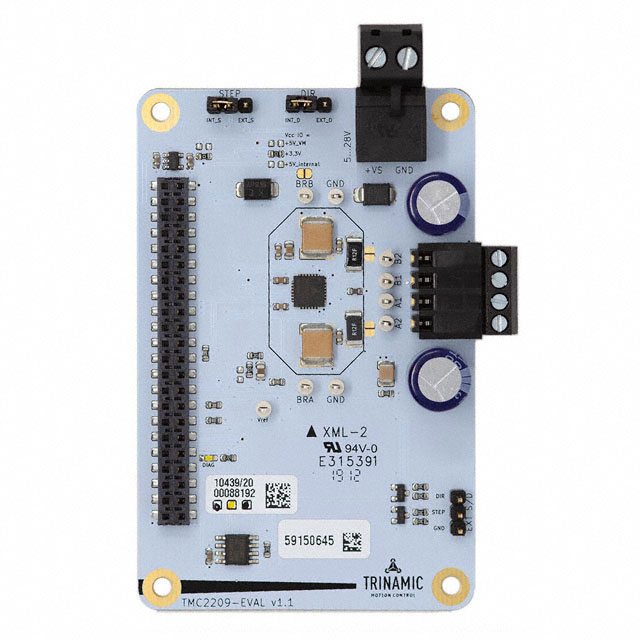

TMC2209-EVAL
ActiveAnalog Devices Inc./Maxim Integrated
EVAL BOARD FOR TMC2209
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMC2209-EVAL
ActiveAnalog Devices Inc./Maxim Integrated
EVAL BOARD FOR TMC2209
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMC2209-EVAL | TMC2209 Series |
|---|---|---|
| Applications | - | Automation Control |
| Contents | Board(s) | Board(s) |
| Current - Output | - | 2 A |
| Function | Motor Controller/Driver | Motor Controller/Driver, Driver - Fully Integrated, Control and Power Stage |
| Interface | - | UART, Step/Direction |
| Motor Type - Stepper | - | Bipolar |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 125 ¯C |
| Output Configuration | - | Step/Direction |
| Package / Case | - | 28-VFQFN Exposed Pad |
| Primary Attributes | Motors (Stepper) | Motors (Stepper) |
| Secondary Attributes | Graphical User Interface (GUI) | Graphical User Interface (GUI) |
| Step Resolution | - | 1 |
| Step Resolution | - | 0.00390625 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 28-QFN (5x5) |
| Technology | - | Power MOSFET |
| Type | Power Management | Power Management |
| Utilized IC / Part | TMC2209 | TMC2209 |
| Voltage - Load | - | 29 V |
| Voltage - Load | - | 5.5 V |
| Voltage - Supply | - | 4.8 V |
| Voltage - Supply | - | 5.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 67.86 | |
TMC2209 Series
EVAL BOARD FOR TMC2209
| Part | Contents | Primary Attributes | Type | Function | Supplied Contents | Utilized IC / Part | Secondary Attributes | Motor Type - Stepper | Applications | Voltage - Supply [Min] | Voltage - Supply [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Output Configuration | Interface | Technology | Supplier Device Package | Mounting Type | Step Resolution [Max] | Step Resolution [Min] | Package / Case | Current - Output | Voltage - Load [Max] | Voltage - Load [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMC2209-EVAL | Board(s) | Motors (Stepper) | Power Management | Motor Controller/Driver | Board(s) | TMC2209 | Graphical User Interface (GUI) | |||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC2209SILENTSTEPSTICK | Board(s) | Motors (Stepper) | Power Management | Motor Controller/Driver | Board(s) | TMC2209 | ||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC2209-LA-T | Driver - Fully Integrated, Control and Power Stage | Bipolar | Automation Control | 4.8 V | 5.25 V | -40 °C | 125 ¯C | Step/Direction | Step/Direction, UART | Power MOSFET | 28-QFN (5x5) | Surface Mount | 1 | 0.00390625 | 28-VFQFN Exposed Pad | 2 A | 29 V | 5.5 V | ||||||
Analog Devices Inc./Maxim Integrated TMC2209-EVAL-KIT | Board(s) | Motors (Stepper) | Power Management | Motor Controller/Driver | Board(s) | TMC2209 | Graphical User Interface (GUI) | |||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC2209-LA | Driver - Fully Integrated, Control and Power Stage | Bipolar | Automation Control | 4.8 V | 5.25 V | -40 °C | 125 ¯C | Step/Direction | Step/Direction, UART | Power MOSFET | 28-QFN (5x5) | Surface Mount | 1 | 0.00390625 | 28-VFQFN Exposed Pad | 2 A | 29 V | 5.5 V |
Description
General part information
TMC2209 Series
TMC2209 Motor Controller/Driver Power Management Evaluation Board
Documents
Technical documentation and resources
