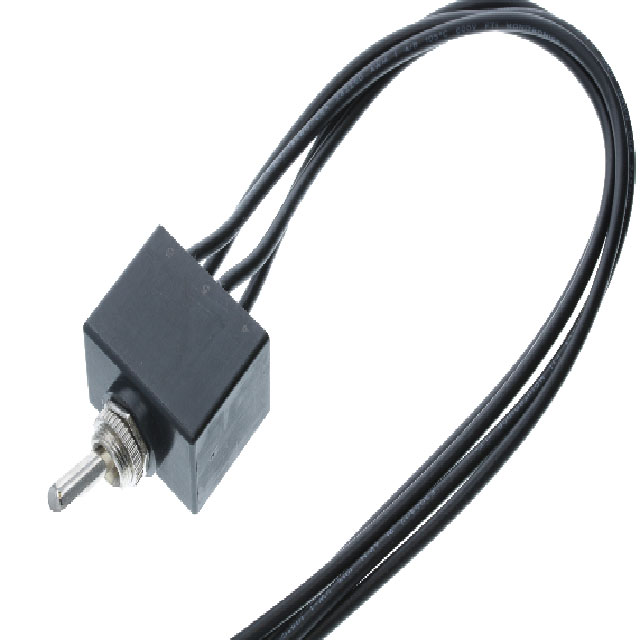

TB1-2A-DC-WW

Active

Switch Components

SWITCH TOGGLE DPST 25A 12V

Search across all available documentation for this part.

Active

Switch Components

SWITCH TOGGLE DPST 25A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TB1-2A-DC-WW	TB1-2A Series

Actuator Length	-	16.5 mm
Actuator Length [z]	15.3 mm	15.3 mm
Actuator Material	Brass, Nickel Plated	Brass, Nickel Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	15/32-32	15/32-32
Circuit	DPST	DPST
Current Rating (Amps)	25 A	10 - 25 A
Electrical Life	6000 Cycles	6000 Cycles
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Panel Cutout Dimensions [diameter]	12 mm	12 - 12.2 mm
Switch Function	On-Off	On-Off
Termination Style	Wire Leads	Screw Terminal, Wire Leads, Solder Lug, Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	-	125 - 250 V
Voltage Rating - DC	12 V	12 - 14 V

SWITCH TOGGLE DPST 20A 125V

Part	Actuator Length [x]	Bushing Thread	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Circuit	Electrical Life	Illumination	Panel Cutout Dimensions [diameter]	Termination Style	Current Rating (Amps)	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Material	Actuator Length [z]	Ingress Protection
Switch Components TB1-2A-DC-6	16.5 mm	15/32-32	On-Off	125 V	14 V	DPST	6000 Cycles	Non-Illuminated	12 mm	Screw Terminal	20 A, 21 A	Standard Round
Switch Components TB1-2A-AC-6	16.5 mm	15/32-32	On-Off	250 V		DPST		Non-Illuminated	12.2 mm	Screw Terminal	10 A	Standard Round
Switch Components TB1-2A-DC-WW		15/32-32	On-Off		12 V	DPST	6000 Cycles	Non-Illuminated	12 mm	Wire Leads	25 A	Standard Round	85 °C	-40 °C	Brass, Nickel Plated	15.3 mm	IP67 - Dust Tight, Waterproof
Switch Components TB1-2A-DC-5	16.5 mm	15/32-32	On-Off	125 V	14 V	DPST	6000 Cycles	Non-Illuminated	12 mm	Solder Lug	20 A, 21 A	Standard Round
Switch Components TB1-2A-DC-1	16.5 mm	15/32-32	On-Off	125 V	14 V	DPST	6000 Cycles	Non-Illuminated	12 mm	Quick Connect - 0.250" (6.3mm)	20 A, 21 A	Standard Round
Switch Components TB1-2A-AC-1	16.5 mm	15/32-32	On-Off	250 V		DPST		Non-Illuminated	12.2 mm	Quick Connect - 0.250" (6.3mm)	10 A	Standard Round
Switch Components TB1-2A-AC-5	16.5 mm	15/32-32	On-Off	250 V		DPST		Non-Illuminated	12.2 mm	Solder Lug	10 A	Standard Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.85

General part information

Toggle Switch DPST Panel Mount
