SDF-R37-113L011

Active

NorComp Inc.

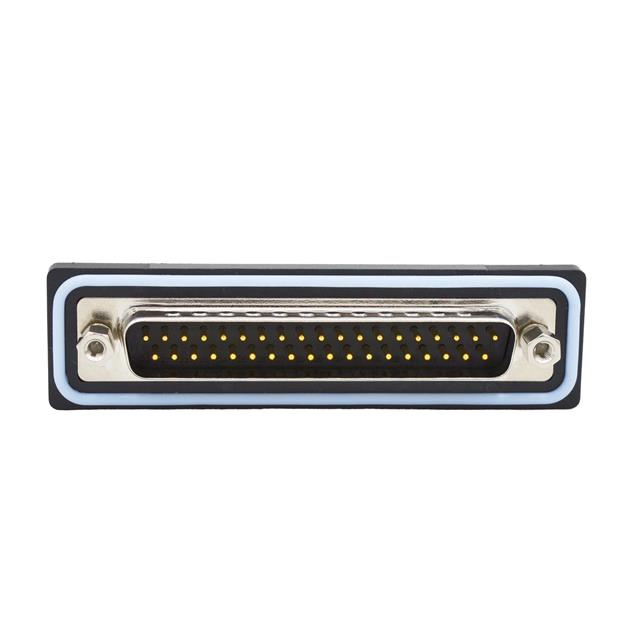

CONN D-SUB PLUG 37POS R/A SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SDF-R37-113L011

Active

NorComp Inc.

CONN D-SUB PLUG 37POS R/A SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 13.51
		10	$ 10.40
		25	$ 9.41
		27	$ 12.49
		40	$ 9.27
		54	$ 11.89
		108	$ 11.33
		270	$ 10.62
		513	$ 10.15
		1026	$ 9.67

Description

General part information

SDF-R37 Series

37 Position D-Sub Plug, Male Pins Connector

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SDF-R37-113L011	SDF-R37 Series

Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins, Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Contact Finish Thickness	-	0.76 Ám
Contact Finish Thickness	-	30 Áin
Contact Material	Brass	Brass
Contact Type	Signal	Signal
Current Rating (Amps)	5 A	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Features	Grounding Indents	Grounding Indents, Mounting Brackets, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	37	37
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout	4 (DC, C)	4 (DC, C)
Termination	Solder	Solder

SDF-R37 Series

CONN D-SUB PLUG 37POS R/A SLDR

Part	Material Flammability Rating	Shell Size, Connector Layout	Termination	Contact Finish	Dielectric Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Features	Number of Positions	Mounting Type	Flange Feature	Connector Style	Shell Material, Finish	Current Rating (Amps)	Color	Number of Rows	Contact Finish Thickness	Ingress Protection	Contact Type	Contact Finish Thickness	Contact Finish Thickness
NorComp Inc. SDF-R37-113L461	UL94 V-0	4 (DC, C)	Solder	Gold	Polybutylene Terephthalate (PBT)	Brass	-25 °C	85 °C	Male Pins, Plug	Board Lock, Grounding Indents, Mounting Brackets	37	Panel Mount, Right Angle, Through Hole	Female Screwlock (4-40), Mating Side	D-Sub	Nickel Plated, Steel	5 A	Black	2	Flash	IP67 - Dust Tight, Waterproof	Signal
NorComp Inc. SDF-R37-113L462	UL94 V-0	4 (DC, C)	Solder	Gold	Polybutylene Terephthalate (PBT)	Brass	-25 °C	85 °C	Male Pins, Plug	Board Lock, Grounding Indents, Mounting Brackets	37	Panel Mount, Right Angle, Through Hole	Female Screwlock (4-40), Mating Side	D-Sub	Nickel Plated, Steel	5 A	Black	2		IP67 - Dust Tight, Waterproof	Signal	0.76 Ám	30 Áin
NorComp Inc. SDF-R37-213L012	UL94 V-0	4 (DC, C)	Solder	Gold	Polybutylene Terephthalate (PBT)	Brass	-25 °C	85 °C	Receptacle, Female Sockets		37	Panel Mount, Right Angle, Through Hole	Female Screwlock (4-40), Mating Side	D-Sub	Nickel Plated, Steel	5 A	Black	2		IP67 - Dust Tight, Waterproof	Signal	0.76 Ám	30 Áin
NorComp Inc. SDF-R37-213L011	UL94 V-0	4 (DC, C)	Solder	Gold	Polybutylene Terephthalate (PBT)	Brass	-25 °C	85 °C	Receptacle, Female Sockets		37	Panel Mount, Right Angle, Through Hole	Female Screwlock (4-40), Mating Side	D-Sub	Nickel Plated, Steel	5 A	Black	2	Flash	IP67 - Dust Tight, Waterproof	Signal
NorComp Inc. SDF-R37-213L462	UL94 V-0	4 (DC, C)	Solder	Gold	Polybutylene Terephthalate (PBT)	Brass	-25 °C	85 °C	Receptacle, Female Sockets	Board Lock, Mounting Brackets	37	Panel Mount, Right Angle, Through Hole	Female Screwlock (4-40), Mating Side	D-Sub	Nickel Plated, Steel	5 A	Black	2		IP67 - Dust Tight, Waterproof	Signal	0.76 Ám	30 Áin
NorComp Inc. SDF-R37-213L461	UL94 V-0	4 (DC, C)	Solder	Gold	Polybutylene Terephthalate (PBT)	Brass	-25 °C	85 °C	Receptacle, Female Sockets	Board Lock, Mounting Brackets	37	Panel Mount, Right Angle, Through Hole	Female Screwlock (4-40), Mating Side	D-Sub	Nickel Plated, Steel	5 A	Black	2	Flash	IP67 - Dust Tight, Waterproof	Signal
NorComp Inc. SDF-R37-113L012	UL94 V-0	4 (DC, C)	Solder	Gold	Polybutylene Terephthalate (PBT)	Brass	-25 °C	85 °C	Male Pins, Plug	Grounding Indents	37	Panel Mount, Right Angle, Through Hole	Female Screwlock (4-40), Mating Side	D-Sub	Nickel Plated, Steel	5 A	Black	2		IP67 - Dust Tight, Waterproof	Signal	0.76 Ám	30 Áin
NorComp Inc. SDF-R37-113L011	UL94 V-0	4 (DC, C)	Solder	Gold	Polybutylene Terephthalate (PBT)	Brass	-25 °C	85 °C	Male Pins, Plug	Grounding Indents	37	Panel Mount, Right Angle, Through Hole	Female Screwlock (4-40), Mating Side	D-Sub	Nickel Plated, Steel	5 A	Black	2	Flash	IP67 - Dust Tight, Waterproof	Signal
