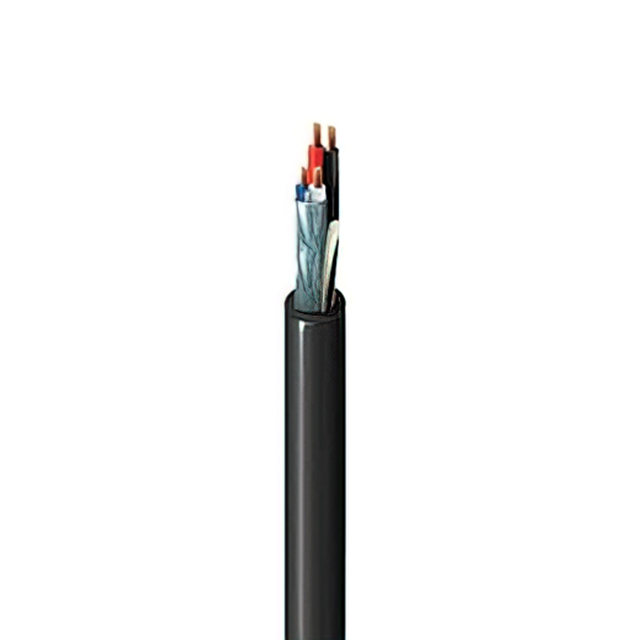

1502R 01010000

Active

Belden Inc.

2 #18 PVC +2 FS #22 FHDPEFRPVC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Broadcast and Professional AV Solutions

1502R 01010000

Active

Belden Inc.

2 #18 PVC +2 FS #22 FHDPEFRPVC

Deep-Dive with AI

DocumentsDatasheet Broadcast and Professional AV Solutions

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1502R 01010000

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16, 7
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.25 "
Jacket (Insulation) Diameter [diameter]	6.35 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.039 in
Jacket (Insulation) Thickness	0.991 mm
Jacket Color	Black
Length	3048 m
Length [x]	10000 ft
Number of Conductors	4
Ratings	UL Style CMG
Shield Coverage	100 %
Shield Material	Aluminum, Polyester, Copper, Tinned
Shield Type	Foil
Usage	Control
Voltage	300 V
Wire Gauge	22 AWG, 18 AWG

1502R Series

Part	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Wire Gauge	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Ratings	Shield Material	Conductor Material	Shield Coverage	Conductor Insulation	Jacket (Insulation) Material	Shield Type	Jacket Color	Features	Length	Length
Belden Inc. 1502R G75500	Control	0.25 "	6.35 mm	500 '	152.4 m	0.039 in	0.991 mm	Multi-Pair	18 AWG 22 AWG	4	7 16	30 AWG	300 V	UL Style CMG	Aluminum Polyester Copper Tinned	Copper Tinned	100 %	Foam Polyethylene (FPE)	Poly-Vinyl Chloride (PVC)	Foil	Aqua	Drain Wire Rip Cord
Belden Inc. 1502R G751000	Control	0.25 "	6.35 mm			0.039 in	0.991 mm	Multi-Pair	18 AWG 22 AWG	4	7 16	30 AWG	300 V	UL Style CMG	Aluminum Polyester Copper Tinned	Copper Tinned	100 %	Foam Polyethylene (FPE)	Poly-Vinyl Chloride (PVC)	Foil	Aqua	Drain Wire Rip Cord	1000 ft	304.8 m
Belden Inc. 1502R 01010000	Control	0.25 "	6.35 mm	10000 ft		0.039 in	0.991 mm	Multi-Pair	18 AWG 22 AWG	4	7 16	30 AWG	300 V	UL Style CMG	Aluminum Polyester Copper Tinned	Copper Tinned	100 %	Foam Polyethylene (FPE)	Poly-Vinyl Chloride (PVC)	Foil	Black	Drain Wire Rip Cord		3048 m
Belden Inc. 1502R 0091000	Control	0.25 "	6.35 mm			0.039 in	0.991 mm	Multi-Pair	18 AWG 22 AWG	4	7 16	30 AWG	300 V	UL Style CMG	Aluminum Polyester Copper Tinned	Copper Tinned	100 %	Foam Polyethylene (FPE)	Poly-Vinyl Chloride (PVC) Riser	Foil		Drain Wire Rip Cord	1000 ft	304.8 m
Belden Inc. 1502R 0101000	Control	0.25 "	6.35 mm			0.039 in	0.991 mm	Multi-Pair	18 AWG 22 AWG	4	7 16	30 AWG	300 V	UL Style CMG	Aluminum Polyester Copper Tinned	Copper Tinned	100 %	Foam Polyethylene (FPE)	Poly-Vinyl Chloride (PVC)	Foil	Black	Drain Wire Rip Cord	1000 ft	304.8 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	10000	$ 1.03

Description

General part information

1502R Series

4 (1 Pair + 2) Conductor Multi-Pair Cable Black 18 AWG, 22 AWG Foil 10000' (3048.0m)
