HES.2F.310.XLDP

Active

LEMO

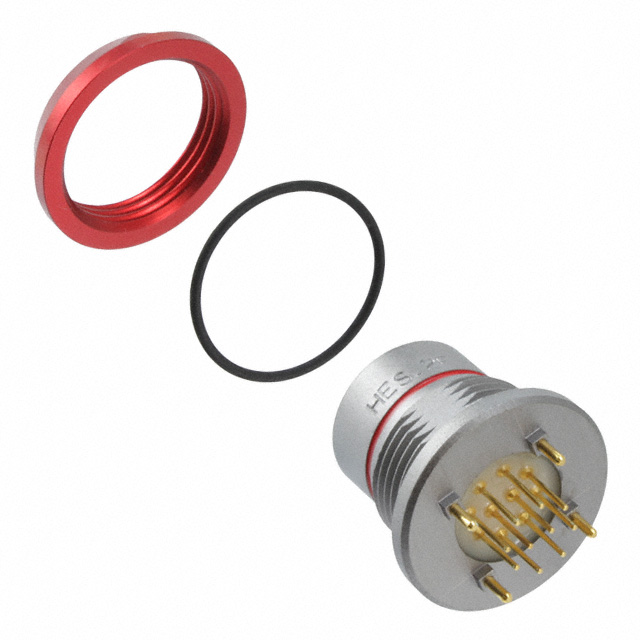

CONN RCPT MALE 10POS GOLD SOLDER

Search across all available documentation for this part.

Active

LEMO

CONN RCPT MALE 10POS GOLD SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HES.2F.310.XLDP	HES.2F Series

Applications	Aerospace	Aerospace
Color	Gray	Gray
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	8 A	8 - 10 A
Fastening Type	Push-Pull	Push-Pull
Features	Potted	Potted
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	10	8 - 10
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-15 °C	-15 °C
Orientation	S	S
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Aluminum Alloy	Aluminum Alloy
Shell Size - Insert	310	308 - 310
Shielding	Shielded	Shielded
Termination	Solder	Solder

CONN RCPT MALE 10POS GOLD SOLDER

Part	Mounting Type	Number of Positions	Connector Type	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Shell Material	Primary Material	Current Rating (Amps)	Termination	Shell Size - Insert	Applications	Contact Finish - Mating	Shielding	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Mounting Feature	Contact Material	Color	Material Flammability Rating	Insert Material	Shell Finish
LEMO HES.2F.310.XLDP	Panel Mount, Through Hole	10	Male Pins, Receptacle	S	100 °C	-15 °C	Push-Pull	Aluminum Alloy	Metal	8 A	Solder	310	Aerospace	Gold	Shielded	Potted	1 µm	39.4 µin	IP68 - Dust Tight, Waterproof	Bulkhead - Front Side Nut	Brass	Gray	UL94 V-0	Polyetheretherketone (PEEK)	Nickel
LEMO HES.2F.308.XLDP	Panel Mount, Through Hole	8	Male Pins, Receptacle	S	100 °C	-15 °C	Push-Pull	Aluminum Alloy	Metal	10 A	Solder	308	Aerospace	Gold	Shielded	Potted	1 µm	39.4 µin	IP68 - Dust Tight, Waterproof	Bulkhead - Front Side Nut	Brass	Gray	UL94 V-0	Polyetheretherketone (PEEK)	Nickel
