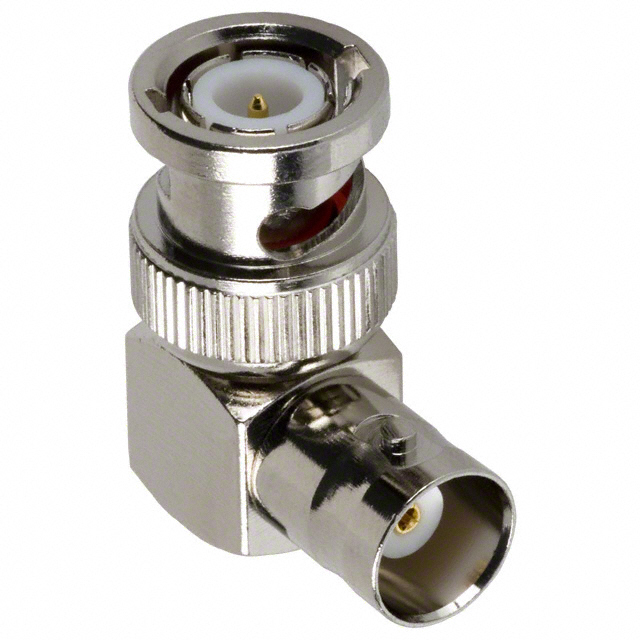

31-9-RFX

Active

Amphenol RF

CONN ADAPT PLUG TO JACK BNC

Search across all available documentation for this part.

Active

Amphenol RF

CONN ADAPT PLUG TO JACK BNC

Technical Specifications

Parameters and characteristics for this part

Specification	31-9-RFX

Adapter Series	BNC to BNC
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	BNC Plug, Male Pin
Convert To (Adapter End)	Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Right Angle

Part	Adapter Series	Body Material	Impedance	Conversion Type	Mounting Type	Convert From (Adapter End)	Frequency - Max [Max]	Fastening Type	Adapter Type	Body Finish	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Style	Center Contact Plating	Center Contact Material	Convert To (Adapter End)	Mating Cycles
Amphenol RF 31-9	BNC to BNC	Brass	50 Ohms	Same Series	Free Hanging (In-Line) Right Angle	BNC Plug Male Pin	4 GHz	Bayonet Lock	Plug to Jack	Nickel	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Right Angle	Gold Silver	Beryllium Copper Phosphor Bronze	BNC Jack Female Socket
Amphenol RF 31-9-RFX	BNC to BNC	Brass	50 Ohms	Same Series	Free Hanging (In-Line) Right Angle	BNC Plug Male Pin	4 GHz	Bayonet Lock	Plug to Jack	Nickel	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Right Angle	Gold	Beryllium Copper Brass	BNC Jack Female Socket	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Plug, Male Pin To BNC Jack, Female Socket 50 Ohms
