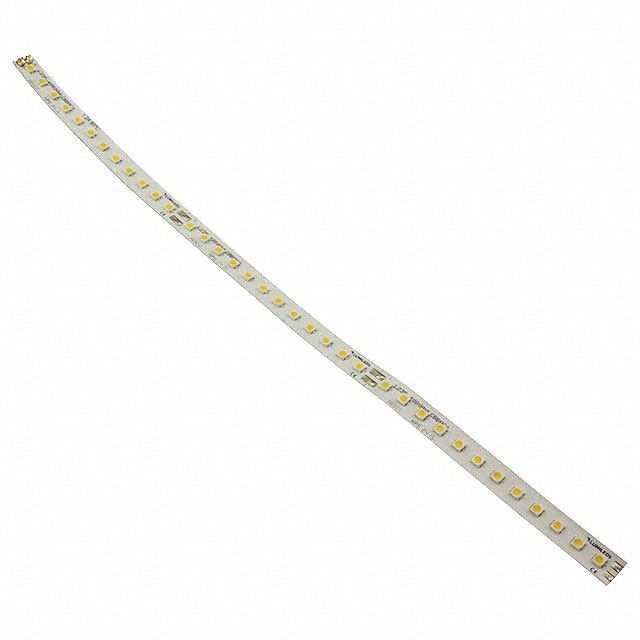

L235-4080AHLCBBAC0

Obsolete

Lumileds

LED MOD LUXEON WH LNR STR 4000K

Search across all available documentation for this part.

Obsolete

Lumileds

LED MOD LUXEON WH LNR STR 4000K

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	L235-4080AHLCBBAC0	L235-4080 Series

CCT (K)	4000 K	4000 K
Color	Neutral, White	Neutral, White
Configuration	Linear Light Strip, Flexible	Linear Light Strip, Flexible
CRI (Color Rendering Index)	80	80
Current - Max [Max]	1.2 A	1.2 - 1.6 A
Current - Test	600 mA	600 - 800 mA
Height [z]	1.23 mm	1.23 mm
Lens Type	Flat	Flat
Lumens/Watt @ Current - Test	147 lm/W	147 lm/W
Luminous Flux @ Current/Temperature	1584 lm	1584 - 2464 lm
Size / Dimension	100.00mm L per Segment	100.00mm L per Segment
Size / Dimension [x]	300 mm	300 - 525.4 mm
Size / Dimension [y]	10 mm	5.25 - 10 mm
Type	LED Module	LED Module
Voltage - Forward (Vf) (Typ)	18 V	18 - 21 V

LED MOD LUXEON WH LNR STR 4000K

Part	Color	Luminous Flux @ Current/Temperature	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	CCT (K)	Height [z]	Current - Test	Size / Dimension [y]	Size / Dimension	Size / Dimension [x]	Type	Lens Type	Configuration	Current - Max [Max]
Lumileds L235-4080AHLCBBAC0	Neutral, White	1584 lm	80	18 V	147 lm/W	4000 K	1.23 mm	600 mA	10 mm	100.00mm L per Segment	300 mm	LED Module	Flat	Flexible, Linear Light Strip	1.2 A
Lumileds L235-4080AMLF5WAD0	Neutral, White	2464 lm	80	21 V	147 lm/W	4000 K	1.23 mm	800 mA	5.25 mm		525.4 mm	LED Module	Flat	Flexible, Linear Light Strip	1.6 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module LUXEON XF-3535L White, Neutral Linear Light Strip, Flexible
