08L36-01-2-03N

Active

Grayhill Inc.

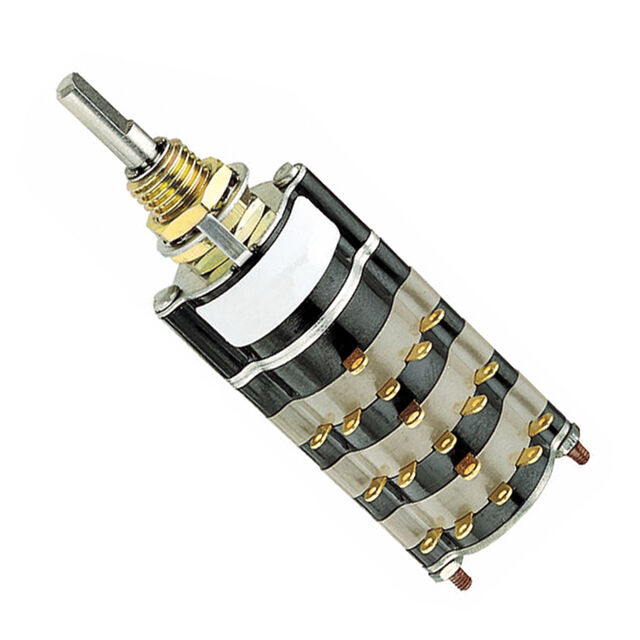

SWITCH ROTARY 3POS 250MA 115V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH ROTARY 3POS 250MA 115V

Technical Specifications

Parameters and characteristics for this part

SWITCH ROTARY 3POS 250MA 115V

Part	Angle of Throw	Depth Behind Panel [z]	Index Stops	Number of Decks [custom]	Contact Finish	Circuit per Deck	Contact Timing	Voltage Rating - DC	Voltage Rating - AC	Contact Material	Current Rating (Amps)	Number of Poles per Deck
Grayhill Inc. 08L36-01-2-03N	36 °	24.38 mm	Fixed	1	Gold	DP3T	Non-Shorting	28 V	115 V	Silver Alloy	250 mA	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 118.39

General part information

Rotary Switch 3 Position DP3T 250mA (AC/DC) 115 VAC

Technical documentation and resources

No documents available
