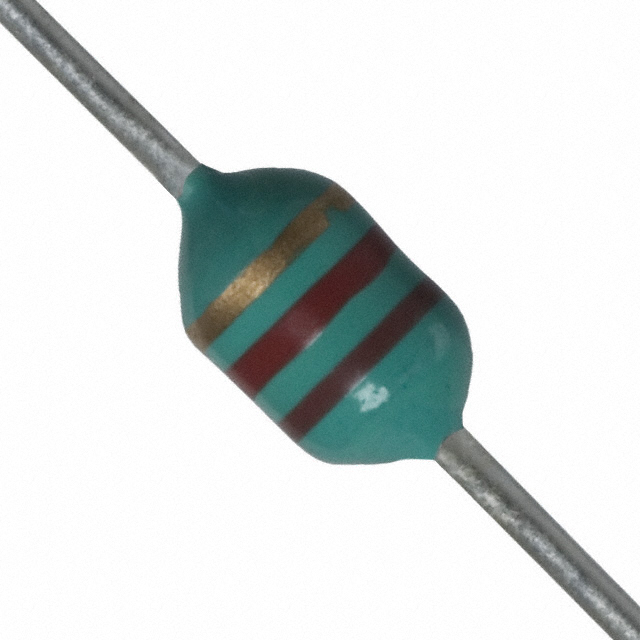

79F2R2K-TR-RC
ObsoleteBourns Inc.
FIXED IND 2.2UH 230MA 1.2 OHM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
79F2R2K-TR-RC
ObsoleteBourns Inc.
FIXED IND 2.2UH 230MA 1.2 OHM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 79F2R2K-TR-RC |
|---|---|
| Current Rating (Amps) | 0.23 A |
| DC Resistance (DCR) [Max] | 1.2 Ohm |
| Frequency - Self Resonant | 45 MHz |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 7.9 MHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Q @ Freq | 7.9 MHz, 40 |
| Shielding | Unshielded |
| Size / Dimension [diameter] | 2.54 mm |
| Size / Dimension [z] | 0.16 ", 4.06 mm |
| Tolerance | 10 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
79F Series
2.2 µH Unshielded Drum Core, Wirewound Inductor 230 mA 1.2Ohm Max Axial
