964132-2
ActiveTE Connectivity AMP Connectors

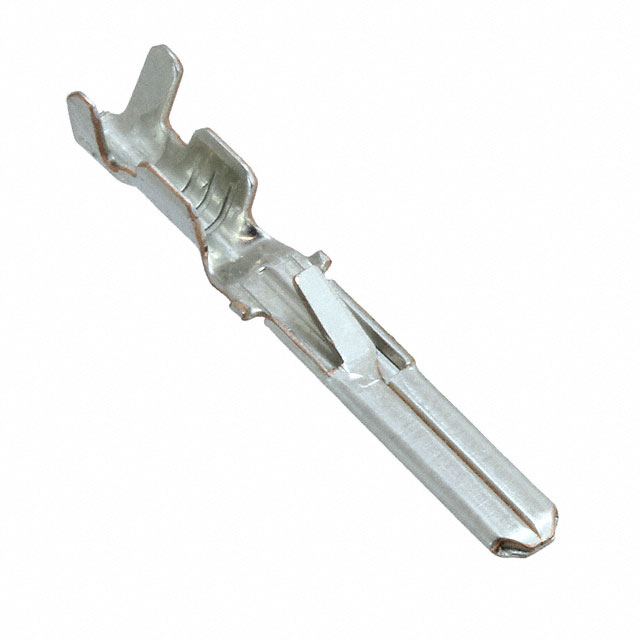

CONN QC TAB 17-20AWG 0.110 CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
964132-2
ActiveTE Connectivity AMP Connectors
CONN QC TAB 17-20AWG 0.110 CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 964132-2 | 964132 Series |
|---|---|---|
| Contact Finish | Tin | Tin |
| Contact Material | Copper | Copper |
| Gender | Male | Male |
| Insulation | Non-Insulated | Non-Insulated |
| Insulation Diameter [Max] [diameter] | 2.31 mm, 0.091 " | 0.091 - 2.31 mm |
| Insulation Diameter [Min] [diameter] | 1.4 mm, 0.055 " | 0.055 - 1.4 mm |
| Length - Overall [x] | 0.866 " | 0.866 " |
| Length - Overall [x] | 22 mm | 22 mm |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Tab Length | 0.335 in | 0.335 in |
| Tab Length | 8.5 mm | 8.5 mm |
| Tab Thickness | 0.032 in | 0.032 in |
| Tab Thickness | 0.81 mm | 0.81 mm |
| Tab Width | 2.79 mm | 2.79 mm |
| Tab Width | 0.11 " | 0.11 " |
| Terminal Type | Standard | Standard |
| Termination | Crimp | Crimp |
| Wire Gauge [Max] | 20 AWG | 20 AWG |
| Wire Gauge [Min] | 17 AWG | 17 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.44 | |
| Tape & Reel (TR) | 4000 | $ 0.37 | ||
| 8000 | $ 0.34 | |||
| 12000 | $ 0.33 | |||
964132 Series
CONN QC TAB 17-20AWG 0.110 CRIMP
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Insulation | Tab Width | Tab Width | Termination | Contact Material | Mounting Type | Terminal Type | Tab Thickness | Tab Thickness | Gender | Tab Length | Tab Length | Contact Finish | Length - Overall [x] | Length - Overall [x] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 964132-2 | 17 AWG | 20 AWG | Non-Insulated | 2.79 mm | 0.11 " | Crimp | Copper | Free Hanging (In-Line) | Standard | 0.032 in | 0.81 mm | Male | 0.335 in | 8.5 mm | Tin | 0.866 " | 22 mm | 0.055 ", 1.4 mm | 0.091 ", 2.31 mm |
TE Connectivity AMP Connectors 1-964132-2 | 17 AWG | 20 AWG | Non-Insulated | 2.79 mm | 0.11 " | Crimp | Copper | Free Hanging (In-Line) | Standard | 0.032 in | 0.81 mm | Male | 0.335 in | 8.5 mm | Tin | 0.866 " | 22 mm | 0.055 ", 1.4 mm | 0.091 ", 2.31 mm |
Description
General part information
964132 Series
0.110" (2.79mm) Quick Connect Male 17-20 AWG Crimp Connector Non-Insulated
