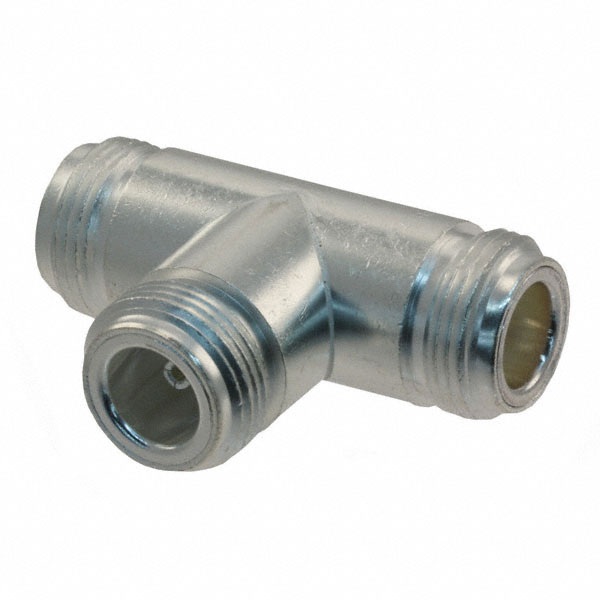

082-99

Active

Amphenol RF

CONN ADAPT JACK-JACK N 50 OHM

Search across all available documentation for this part.

Active

Amphenol RF

CONN ADAPT JACK-JACK N 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	082-99

Adapter Series	N to N, Dual
Adapter Type	Jack to Jack
Body Finish	Silver
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	N Jack, Female Socket (2)
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	T-Shape

Part	Style	Body Finish	Convert From (Adapter End)	Center Gender	Convert To (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Dielectric Material	Conversion Type	Impedance	Center Contact Material	Adapter Series	Adapter Type	Mating Cycles	Body Material	Mounting Type	Center Contact Plating
Amphenol RF 082-99	T-Shape	Silver	Female Socket N Jack	Female to Female	Female Socket (2) N Jack	-65 ░C	165 °C	11 GHz	Polytetrafluoroethylene (PTFE)	Same Series	50 Ohms	Beryllium Copper	N to N Dual	Jack to Jack	500	Brass	Free Hanging (In-Line)	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 130.41

General part information

Adapter Coaxial Connector N Jack, Female Socket To N Jack, Female Socket (2) 50 Ohms
