Technical Specifications
Parameters and characteristics for this part
| Specification | 9228 010500 |
|---|---|
| Cable Type | Coaxial |
| Conductor Material | Steel, Copper Coated |
| Conductor Strand | Solid |
| Dielectric Diameter [diameter] | 0.146 " |
| Dielectric Diameter [diameter] | 3.71 mm |
| Dielectric Material | Semi Solid Polyethylene (SSPE) |
| Impedance | 93 Ohms |
| Jacket (Insulation) Material | High Density Polyethylene (HDPE) |
| Jacket Color | Black |
| Length | 152.4 m |
| Length | 6000 in |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -55 °C |
| Shield Coverage | 95 % |
| Shield Material | Copper, Bare |
| Shield Type | Braid |
| VoP, Velocity of Propagation | 84 |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 500 | $ 2.16 | |
Description
General part information
9228 Series

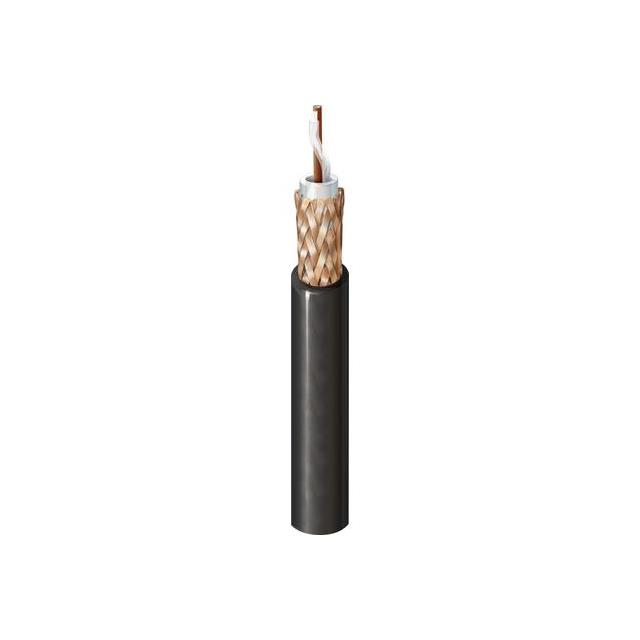

Coaxial Cable 22 AWG RG-62A 500.0' (152.40m) 93 Ohms
