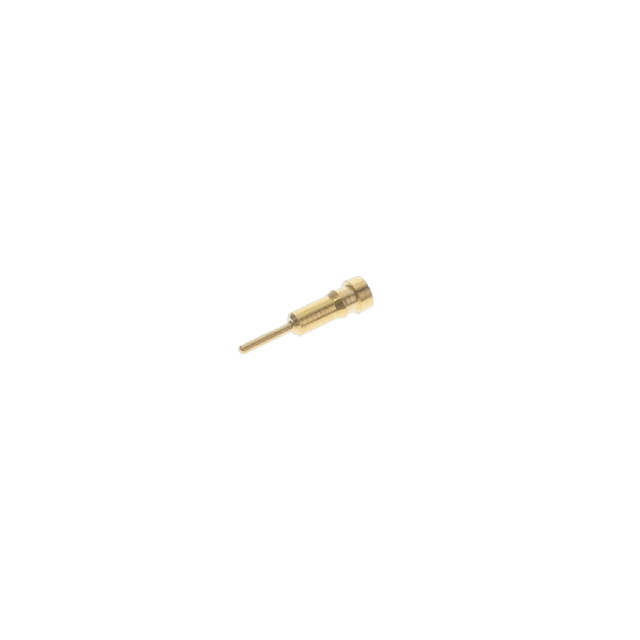

SC-1P1-GG
ActiveSamtec Inc.
STAND I/W SOCKETS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SC-1P1-GG
ActiveSamtec Inc.
STAND I/W SOCKETS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SC-1P1-GG |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Flange Diameter [diameter] | 1.83 mm |
| Flange Diameter [diameter] | 0.072 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.27 in |
| Length - Above Flange [x] | 6.86 mm |
| Length - Overall [x] | 7.62 mm |
| Length - Overall [x] | 0.3 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.51 mm |
| Pin Size - Above Flange [diameter] | 0.02 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.69 | |
| 10 | $ 0.53 | |||
| 25 | $ 0.47 | |||
| 50 | $ 0.44 | |||
| 100 | $ 0.40 | |||
| 250 | $ 0.36 | |||
| 500 | $ 0.34 | |||
| 1000 | $ 0.31 | |||
| 2500 | $ 0.28 | |||
Description
General part information
SC-1P1-G Series
PC Pin Terminal Connector Through Hole Gold 0.020" (0.51mm) Dia
