1415124

Active

Phoenix Contact

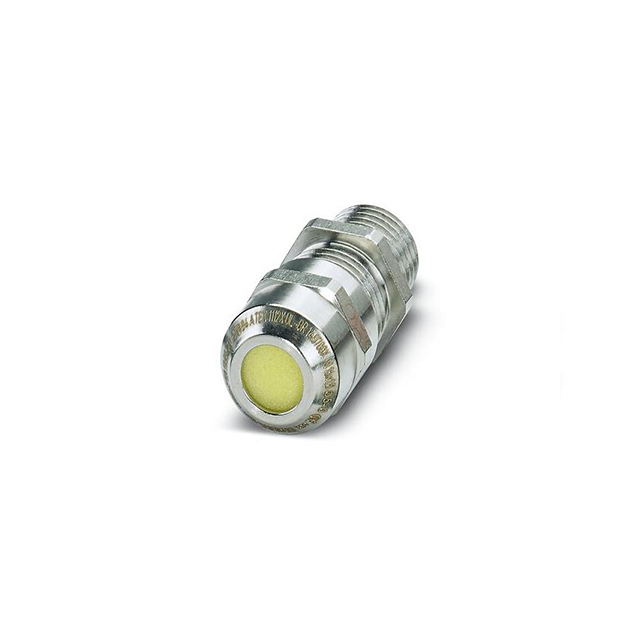

CABLE GLAND 5-10MM M16 BRASS

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 5-10MM M16 BRASS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1415124	G-ESIS-M16 Series

Color	Silver	Black, Blue, Silver
Includes	O-Ring, Seal	Seal, O-Ring
Ingress Protection	IP66/IP68	IP66/IP68
Material	Brass, Nickel Plated	Polyamide (PA), Nylon, Brass, Nickel Plated
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max)	-	9 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.394 "	0.394 "
Outside Cable Diameter (Max) [Max] [diameter]	10 mm	0.354 - 10 in
Outside Cable Diameter (Min)	-	0.177 in
Outside Cable Diameter (Min)	-	4.5 mm
Outside Cable Diameter (Min) [Min]	5 mm	5 mm
Outside Cable Diameter (Min) [Min]	0.197 in	0.197 in
Thread Length	0.472 in	0.472 - 0.591 in
Thread Length	12 mm	12 - 15 mm
Thread Size	M16	M16
Type	Cable Gland	Cable Gland

CABLE GLAND 4.5-9MM M16 POLYAMID

Part	Color	Includes	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Material	Type	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
Phoenix Contact 1415116	Black, Blue	Seal	0.177 in	4.5 mm	IP66/IP68	-40 °C	75 ░C	Polyamide (PA), Nylon	Cable Gland	0.591 in	15 mm	9 mm	0.354 in	M16
Phoenix Contact 1415124	Silver	O-Ring, Seal			IP66/IP68	-40 °C	75 ░C	Brass, Nickel Plated	Cable Gland	0.472 in	12 mm		10 mm	M16	0.394 "	5 mm	0.197 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 10.07

General part information

Cable Gland Brass, Nickel Plated M16 Silver
