6542PA 0081000

Active

Belden Inc.

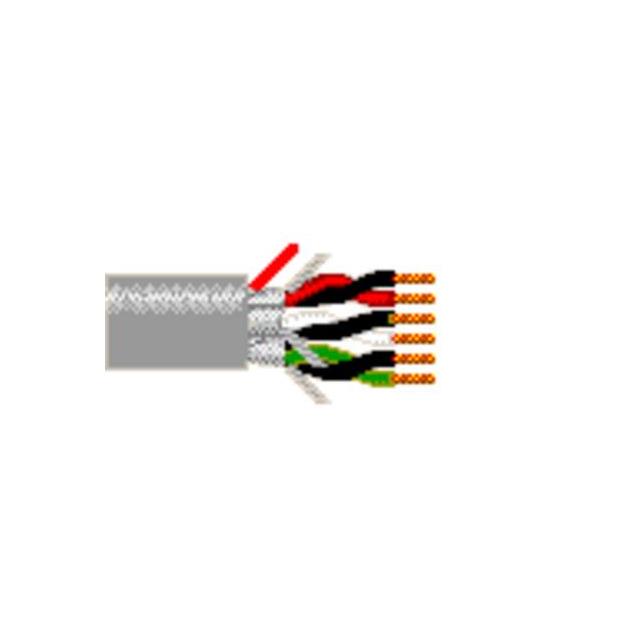

MULTI-PAIR 6CON 22AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 6CON 22AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	6542PA 0081000

Cable Type	Multi-Pair
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Bare
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter	5.79 mm
Jacket (Insulation) Diameter	0.228 in
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF), Plenum
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	6
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-20 C
Ratings	UL Style CMP
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Sound, Security
Voltage	300 V
Wire Gauge	22 AWG

Part	Jacket Color	Wire Gauge	Shield Material	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Features	Shield Coverage	Conductor Insulation	Number of Conductors	Operating Temperature [Max]	Operating Temperature [Min]	Shield Type	Conductor Material	Usage	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Length	Length
Belden Inc. 6542PA 0081000	Gray	22 AWG	Aluminum	5.79 mm	0.228 in	Drain Wire Rip Cord	100 %	Fluorinated Ethylene-Propylene (FEP)	6	150 °C	-20 C	Foil	Copper Bare	Security Sound	Multi-Pair	0.015 in	0.381 mm	Plenum Polyvinylidene Fluoride (PVDF)	300 V	7	30 AWG	UL Style CMP	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.62

General part information

6 (3 Pair Twisted) Conductor Multi-Pair Cable Gray 22 AWG Foil 1000.0' (304.8m)
