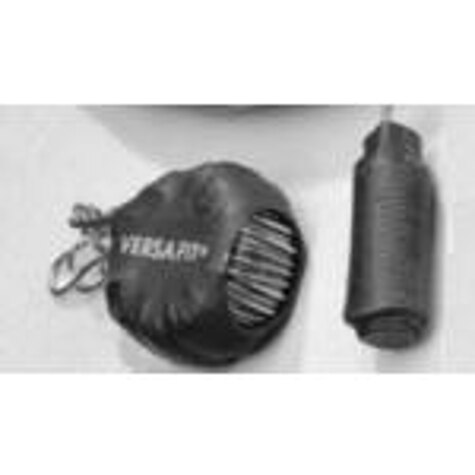

Specification	VERSAFIT-3/32-6-SP

Color	Blue
Features	Flame Retardant
Inner Diameter - Recovered	0.046 in
Inner Diameter - Supplied	0.11 in
Length	492.1 ft
Material	Polyolefin (PO)
Operating Temperature (Max)	135 °C
Operating Temperature (Min)	-55 °C
Recovered Wall Thickness	0.02 in
Shelf Life	144 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2
Storage/Refrigeration Temperature (Maximum)	95 °F
Storage/Refrigeration Temperature (Minimum)	65 °F
Type	Flexible, Tubing

VERSAFIT Series

...

Part	Storage/Refrigeration Temperature (Minimum)	Storage/Refrigeration Temperature (Maximum)	Shrink Temperature	Inner Diameter - Supplied	Type	Length	Shrinkage Ratio	Inner Diameter - Recovered	Features	Length	Operating Temperature (Min)	Operating Temperature (Max)	Shelf Life	Material	Color	Recovered Wall Thickness	Spool Size
TE Connectivity AMP Connectors VERSAFIT-3/8-0-SP-SM	65 °F	95 °F	70 °C	0.4 in	Flexible Tubing	Enter Number of Meters in Order Quantity	2	0.187 in	Flame Retardant	196.8 ft	-55 °C	135 °C	144 Months	Polyolefin (PO)	Black	0.025 in	393.7 ft
TE Connectivity AMP Connectors VERSAFIT-4-0-SP	65 °F	95 °F	70 °C	4.098 in	Flexible Tubing		2	2 in	Flame Retardant	12 in 100 ft	-55 °C	135 °C	144 Months	Polyolefin (PO)	Black	0.055 in
TE Connectivity AMP Connectors VERSAFIT-3/16-9-SP	65 °F	95 °F	70 °C	0.205 in	Flexible Tubing		2	0.093 in	Flame Retardant	5 ft 25 ft 100 ft 492.1 ft	-55 °C	135 °C	144 Months	Polyolefin (PO)	White	0.02 in
TE Connectivity AMP Connectors VERSAFIT-1/8-2-SP	65 °F	95 °F	70 °C	0.135 in	Flexible Tubing		2	0.062 in	Flame Retardant	12 in 1476 ft	-55 °C	135 °C	144 Months	Polyolefin (PO)	Red	0.02 in
TE Connectivity AMP Connectors VERSAFIT-1/4-0-SP-SM	65 °F	95 °F	70 °C	0.28 in	Flexible Tubing	Enter Number of Meters in Order Quantity	2	0.125 in	Flame Retardant	5000 ft	-55 °C	135 °C	144 Months	Polyolefin (PO)	Black	0.025 in	492.1 ft
TE Connectivity AMP Connectors VERSAFIT-1/16-0-SP-SM	65 °F	95 °F	70 °C	0.073 in	Flexible Tubing		2	0.031 in	Flame Retardant	2952.8 ft	-55 °C	135 °C	144 Months	Polyolefin (PO)	Black	0.017 in
TE Connectivity AMP Connectors VERSAFIT-3/4-0-STK	65 °F	95 °F	70 °C	0.805 in	Flexible Tubing		2	0.374 in	Flame Retardant	48 in	-55 °C	135 °C	144 Months	Polyolefin (PO)	Black	0.03 in
TE Connectivity AMP Connectors VERSAFIT-3/64-6-SP	65 °F	95 °F	70 °C	0.063 in	Flexible Tubing		2	0.023 in	Flame Retardant		-55 °C	135 °C	144 Months	Polyolefin (PO)	Blue	0.015 in
TE Connectivity AMP Connectors VERSAFIT-2-0-SP	65 °F	95 °F	70 °C	2.08 in	Flexible Tubing		2	1 in	Flame Retardant	9.84 ft 12 in 16.4 ft 32.8 ft 65.6 ft 82 ft 125 ft 131.2 ft	-55 °C	135 °C	144 Months	Polyolefin (PO)	Black	0.045 in
TE Connectivity AMP Connectors VERSAFIT-5/8-9-SP	65 °F	95 °F	70 °C	0.665 in	Flexible Tubing		2	0.315 in	Flame Retardant		-55 °C	135 °C	144 Months	Polyolefin (PO)	White	0.03 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

VERSAFIT-3/32-6-SP | Datasheet
