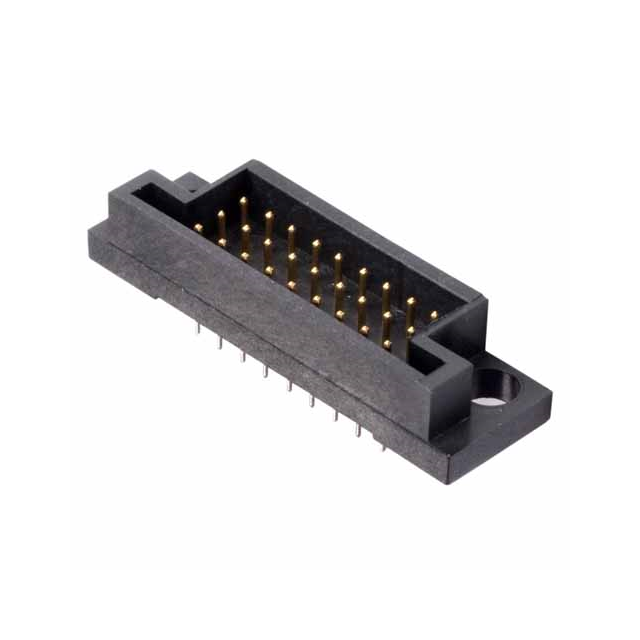

M80-7024522

Active

Harwin Inc.

CONN HEADER VERT 45POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M80-7xx Datamate Connectors +1

M80-7024522

Active

Harwin Inc.

CONN HEADER VERT 45POS 2MM

Deep-Dive with AI

DocumentsDatasheet M80-7xx Datamate Connectors +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-7024522

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Fastening Type	Push-Pull
Features	Mating Flange
Insulation Color	Black
Insulation Height	0.244 in
Insulation Height	6.2 mm
Insulation Material	Polyamide (PA46), Nylon 4/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	45
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	120 VDC

M80-702 Series

Part	Insulation Height	Insulation Height	Style	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Contact Material	Insulation Color	Termination	Contact Shape	Connector Type	Number of Positions	Contact Type	Material Flammability Rating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Insulation Material	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Contact Finish - Mating	Shrouding
Harwin Inc. M80-7023642	0.244 in	6.2 mm	Board to Board Cable	Tin	3 µm	118.1 µin	0.079 in	2 mm	0.118 in	3 mm	2.2 A	Phosphor Bronze	Black	Solder	Circular	Header	36	Male Pin	UL94 V-0	Push-Pull	-55 °C	125 °C	Through Hole	Polyamide (PA46) Nylon 4/6	All	0.079 in	2 mm	3	120 VDC	29.5 Áin	0.75 Ám	Mating Flange	Gold	Shrouded - 4 Wall
Harwin Inc. M80-7026342	0.244 in	6.2 mm	Board to Board Cable	Tin	3 µm	118.1 µin	0.079 in	2 mm	0.118 in	3 mm	2.2 A	Phosphor Bronze	Black	Solder	Circular	Header	63	Male Pin	UL94 V-0	Push-Pull	-55 °C	125 °C	Through Hole	Polyamide (PA46) Nylon 4/6	All	0.079 in	2 mm	3	120 VDC	29.5 Áin	0.75 Ám	Mating Flange	Gold	Shrouded - 4 Wall
Harwin Inc. M80-7024522	0.244 in	6.2 mm	Board to Board Cable	Tin-Lead	3 µm	118.1 µin	0.079 in	2 mm	0.118 in	3 mm	2.2 A	Phosphor Bronze	Black	Solder	Circular	Header	45	Male Pin	UL94 V-0	Push-Pull	-55 °C	125 °C	Through Hole	Polyamide (PA46) Nylon 4/6	All	0.079 in	2 mm	3	120 VDC	29.5 Áin	0.75 Ám	Mating Flange	Gold	Shrouded - 4 Wall
Harwin Inc. M80-7025122	0.244 in	6.2 mm	Board to Board Cable	Tin-Lead	3 µm	118.1 µin	0.079 in	2 mm	0.118 in	3 mm	2.2 A	Phosphor Bronze	Black	Solder	Circular	Header	51	Male Pin	UL94 V-0	Push-Pull	-55 °C	125 °C	Through Hole	Polyamide (PA46) Nylon 4/6	All	0.079 in	2 mm	3	120 VDC	29.5 Áin	0.75 Ám	Mating Flange	Gold	Shrouded - 4 Wall

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	450	$ 5.54
