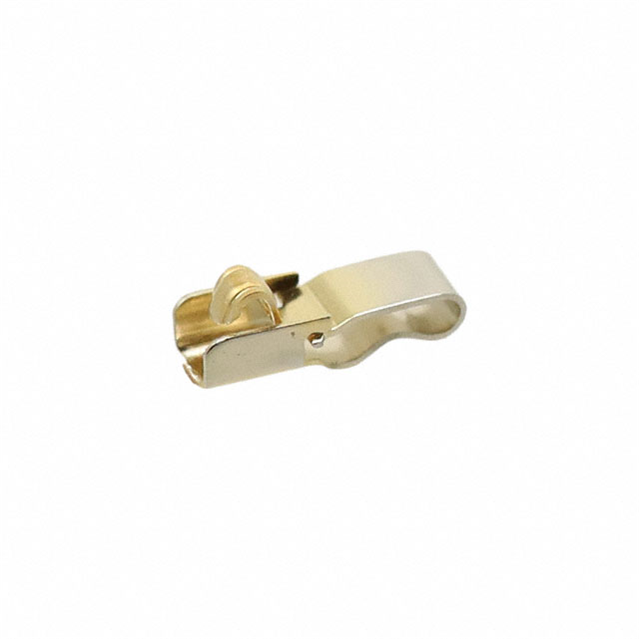

10104320-009RLF
ActiveAmphenol ICC (FCI)
RFI SHLD FINGER BECU GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
10104320-009RLF
ActiveAmphenol ICC (FCI)
RFI SHLD FINGER BECU GOLD SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10104320-009RLF |
|---|---|
| Attachment Method | Solder |
| Height [z] | 0.051 in |
| Height [z] | 1.3 mm |
| Length [x] | 3.48 mm |
| Length [x] | 0.137 " |
| Material | Beryllium Copper Alloy |
| Plating | Gold |
| Plating - Thickness | Flash |
| Type | Shield Finger, Pre-Loaded |
| Width [x] | 1.1 mm |
| Width [x] | 0.043 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.18 | |
| 10 | $ 0.14 | |||
| 25 | $ 0.12 | |||
| 50 | $ 0.11 | |||
| 100 | $ 0.10 | |||
| 250 | $ 0.09 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.08 | |||
| 2500 | $ 0.07 | |||
| Digi-Reel® | 1 | $ 0.18 | ||
| 10 | $ 0.14 | |||
| 25 | $ 0.12 | |||
| 50 | $ 0.11 | |||
| 100 | $ 0.10 | |||
| 250 | $ 0.09 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.08 | |||
| 2500 | $ 0.07 | |||
| Tape & Reel (TR) | 8000 | $ 0.05 | ||
Description
General part information
10104320 Series
RFI SHLD FINGER BECU GOLD SOLDER
