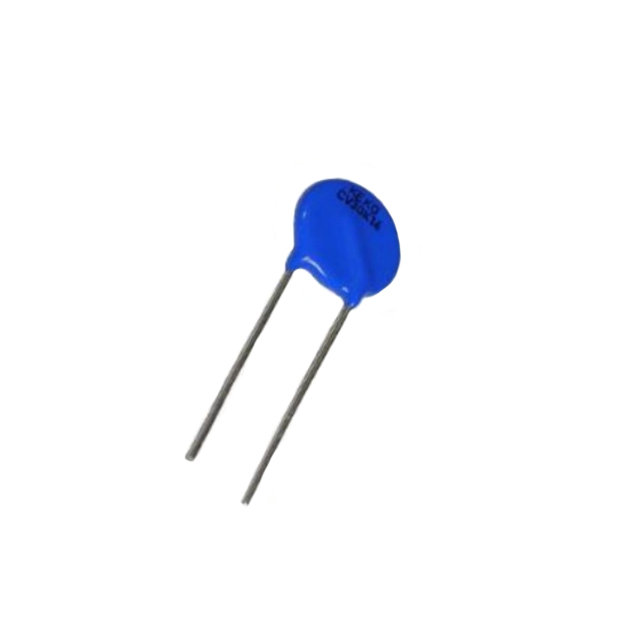

CV140K07T

Active

Stackpole Electronics Inc

MOV, 140V (VRMS), 10%, 7MM

Search across all available documentation for this part.

Active

Stackpole Electronics Inc

MOV, 140V (VRMS), 10%, 7MM

Technical Specifications

Parameters and characteristics commom to parts in this series

MOV, 140V (VRMS), 10%, 5MM

Part	Energy	Varistor Voltage (Typ)	Maximum AC Volts [Max]	Current - Surge	Number of Circuits	Capacitance @ Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Varistor Voltage (Max) [Max]	Package / Case	Package / Case	Varistor Voltage (Min) [Min]	Mounting Type	Maximum DC Volts [Max]	Package / Case [diameter]
Stackpole Electronics Inc CV140K05B	7 J	220 V	140 V	400 A	1	140 pF	85 °C	-40 °C	242 V	Disc	5 mm	198 V	Through Hole	180 V
Stackpole Electronics Inc CV140K20B	157 J	220 V	140 V		1	1700 pF	85 °C	-40 °C	242 V	Disc 20mm		198 V	Through Hole	180 V
Stackpole Electronics Inc CV140K05T	7 J	220 V	140 V	400 A	1	140 pF	85 °C	-40 °C	242 V	Disc	5 mm	198 V	Through Hole	180 V
Stackpole Electronics Inc CV140K10B	37 J	220 V	140 V	2.5 kA	1	540 pF	85 °C	-40 °C	242 V	Disc		198 V	Through Hole	180 V	10 mm
Stackpole Electronics Inc CV140K10B-05	37 J	220 V	140 V	2.5 kA	1	540 pF	85 °C	-40 °C	242 V	Disc		198 V	Through Hole	180 V	10 mm
Stackpole Electronics Inc CV140K07T-05	18 J	220 V	140 V	1.2 kA	1	300 pF	85 °C	-40 °C	242 V	Disc		198 V	Through Hole	180 V	7 mm
Stackpole Electronics Inc CV140K10T	37 J	220 V	140 V	2.5 kA	1	540 pF	85 °C	-40 °C	242 V	Disc		198 V	Through Hole	180 V	10 mm
Stackpole Electronics Inc CV140K07T	18 J	220 V	140 V	1.2 kA	1	300 pF	85 °C	-40 °C	242 V	Disc		198 V	Through Hole	180 V	7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20400	$ 0.10

General part information

220 V 1.2 kA Varistor 1 Circuit Through Hole Disc 7mm
