104078-7

Active

TE Connectivity AMP Connectors

CONN RCPT 80POS 0.05 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

104078-7

Active

TE Connectivity AMP Connectors

CONN RCPT 80POS 0.05 GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	104078-7	104078 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	150 Áin	150 Áin
Contact Finish Thickness - Post	3.81 Ám	3.81 Ám
Contact Length - Post	2.54 mm	2.54 mm
Contact Length - Post	0.1 in	0.1 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height [custom]	0.35 in	0.35 in
Insulation Height [custom]	8.89 mm	8.89 mm
Mated Stacking Heights	11.43 mm, 12.57 mm	11.43 - 12.57 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	80	10 - 100
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.05 in	0.05 in
Pitch - Mating	1.27 mm	1.27 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Termination	Solder	Solder
Voltage Rating	30 VAC	30 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	660	$ 17.36

104078 Series

CONN RCPT 68POS 0.05 GOLD PCB

Part	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Mated Stacking Heights	Insulation Height [custom]	Insulation Height [custom]	Contact Finish - Mating	Number of Rows	Insulation Color	Voltage Rating	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Finish - Post	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Length - Post	Contact Length - Post	Termination	Number of Positions	Material Flammability Rating
TE Connectivity AMP Connectors 1-104078-3	Copper Alloy	150 Áin	3.81 Ám	All	11.43 mm, 12.57 mm	0.35 in	8.89 mm	Gold	2	Black	30 VAC	Receptacle	30 Áin	0.76 Ám	Female Socket	2.54 mm	0.1 in	-65 ░C	105 ░C	Push-Pull	Tin-Lead	Through Hole	0.05 in	1.27 mm	Square	2.54 mm	0.1 in	Solder	68	UL94 V-0
TE Connectivity AMP Connectors 104078-4	Copper Alloy	150 Áin	3.81 Ám	All	11.43 mm, 12.57 mm	0.35 in	8.89 mm	Gold	2	Black	30 VAC	Receptacle	30 Áin	0.76 Ám	Female Socket	2.54 mm	0.1 in	-65 ░C	105 ░C	Push-Pull	Tin-Lead	Through Hole	0.05 in	1.27 mm	Square	2.54 mm	0.1 in	Solder	30	UL94 V-0
TE Connectivity AMP Connectors 104078-8	Copper Alloy	150 Áin	3.81 Ám	All	11.43 mm, 12.57 mm	0.35 in	8.89 mm	Gold	2	Black	30 VAC	Receptacle	30 Áin	0.76 Ám	Female Socket	2.54 mm	0.1 in	-65 ░C	105 ░C	Push-Pull	Tin-Lead	Through Hole	0.05 in	1.27 mm	Square	2.54 mm	0.1 in	Solder	100	UL94 V-0
TE Connectivity AMP Connectors 5-104078-4	Copper Alloy	150 Áin	3.81 Ám	All	11.43 mm, 12.57 mm	0.35 in	8.89 mm	Gold	2	Black	30 VAC	Receptacle	30 Áin	0.76 Ám	Female Socket	2.54 mm	0.1 in	-65 ░C	105 ░C	Push-Pull	Tin	Through Hole	0.05 in	1.27 mm	Square	2.54 mm	0.1 in	Solder	30	UL94 V-0
TE Connectivity AMP Connectors 104078-3	Copper Alloy	150 Áin	3.81 Ám	All	11.43 mm, 12.57 mm	0.35 in	8.89 mm	Gold	2	Black	30 VAC	Receptacle	30 Áin	0.76 Ám	Female Socket	2.54 mm	0.1 in	-65 ░C	105 ░C	Push-Pull	Tin-Lead	Through Hole	0.05 in	1.27 mm	Square	2.54 mm	0.1 in	Solder	10	UL94 V-0
TE Connectivity AMP Connectors 5-104078-7	Copper Alloy	150 Áin	3.81 Ám	All	11.43 mm, 12.57 mm	0.35 in	8.89 mm	Gold	2	Black	30 VAC	Receptacle	30 Áin	0.76 Ám	Female Socket	2.54 mm	0.1 in	-65 ░C	105 ░C	Push-Pull	Tin	Through Hole	0.05 in	1.27 mm	Square	2.54 mm	0.1 in	Solder	80	UL94 V-0
TE Connectivity AMP Connectors 5-104078-8	Copper Alloy	150 Áin	3.81 Ám	All	11.43 mm, 12.57 mm	0.35 in	8.89 mm	Gold	2	Black	30 VAC	Receptacle	30 Áin	0.76 Ám	Female Socket	2.54 mm	0.1 in	-65 ░C	105 ░C	Push-Pull	Tin	Through Hole	0.05 in	1.27 mm	Square	2.54 mm	0.1 in	Solder	100	UL94 V-0
TE Connectivity AMP Connectors 6-104078-3	Copper Alloy	150 Áin	3.81 Ám	All	11.43 mm, 12.57 mm	0.35 in	8.89 mm	Gold	2	Black	30 VAC	Receptacle	30 Áin	0.76 Ám	Female Socket	2.54 mm	0.1 in	-65 ░C	105 ░C	Push-Pull	Tin	Through Hole	0.05 in	1.27 mm	Square	2.54 mm	0.1 in	Solder	68	UL94 V-0
TE Connectivity AMP Connectors 5-104078-9	Copper Alloy	150 Áin	3.81 Ám	All	11.43 mm, 12.57 mm	0.35 in	8.89 mm	Gold	2	Black	30 VAC	Receptacle	30 Áin	0.76 Ám	Female Socket	2.54 mm	0.1 in	-65 ░C	105 ░C	Push-Pull	Tin	Through Hole	0.05 in	1.27 mm	Square	2.54 mm	0.1 in	Solder	24	UL94 V-0
TE Connectivity AMP Connectors 5-104078-1	Copper Alloy	150 Áin	3.81 Ám	All	11.43 mm, 12.57 mm	0.35 in	8.89 mm	Gold	2	Black	30 VAC	Receptacle	30 Áin	0.76 Ám	Female Socket	2.54 mm	0.1 in	-65 ░C	105 ░C	Push-Pull	Tin	Through Hole	0.05 in	1.27 mm	Square	2.54 mm	0.1 in	Solder	20	UL94 V-0
TE Connectivity AMP Connectors 104078-7	Copper Alloy	150 Áin	3.81 Ám	All	11.43 mm, 12.57 mm	0.35 in	8.89 mm	Gold	2	Black	30 VAC	Receptacle	30 Áin	0.76 Ám	Female Socket	2.54 mm	0.1 in	-65 ░C	105 ░C	Push-Pull	Tin-Lead	Through Hole	0.05 in	1.27 mm	Square	2.54 mm	0.1 in	Solder	80	UL94 V-0
TE Connectivity AMP Connectors 6-104078-0	Copper Alloy	150 Áin	3.81 Ám	All	11.43 mm, 12.57 mm	0.35 in	8.89 mm	Gold	2	Black	30 VAC	Receptacle	30 Áin	0.76 Ám	Female Socket	2.54 mm	0.1 in	-65 ░C	105 ░C	Push-Pull	Tin	Through Hole	0.05 in	1.27 mm	Square	2.54 mm	0.1 in	Solder	34	UL94 V-0

Description

General part information

104078 Series

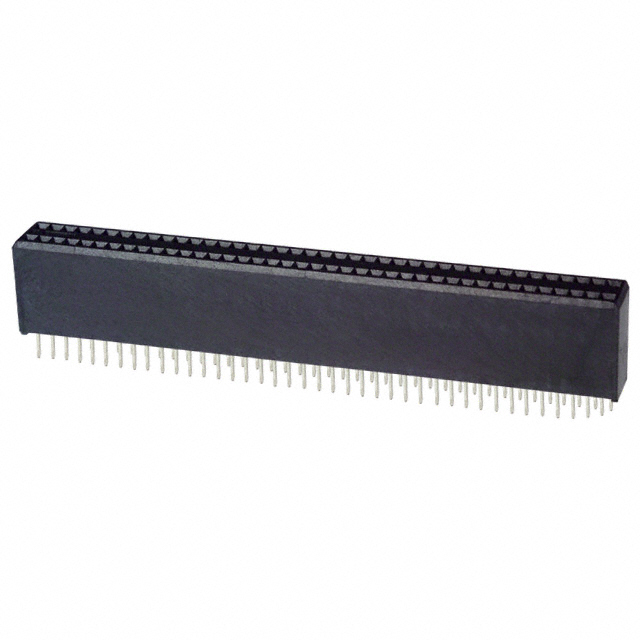

80 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
