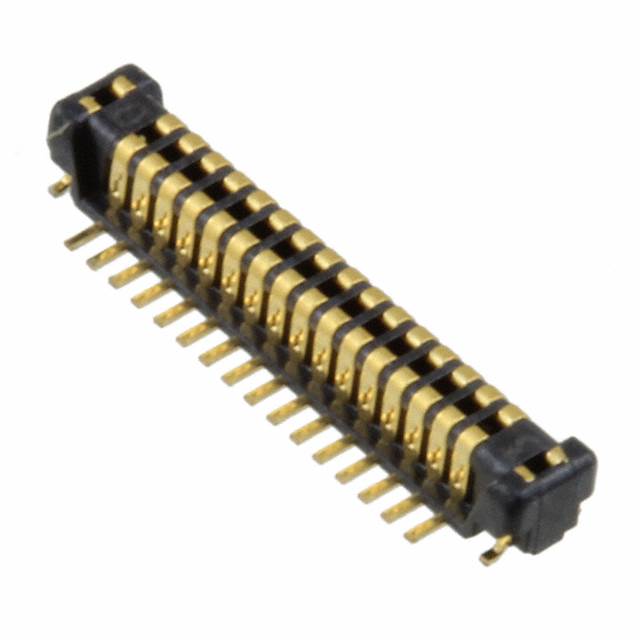

AXT432124 - AXT432124

AXT432124

Obsolete
Panasonic Electric Works

CONN HDR 32POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsConnectors SMD-Technical InfoHow to Read Date Codes
AXT432124 - AXT432124

AXT432124

Obsolete
Panasonic Electric Works

CONN HDR 32POS SMD GOLD

Deep-Dive with AI

DocumentsConnectors SMD-Technical InfoHow to Read Date Codes

Technical Specifications

Parameters and characteristics for this part

SpecificationAXT432124
Connector TypeHeader, Center Strip Contacts
Contact FinishGold
FeaturesSolder Retention
Height Above Board0.049 in
Height Above Board1.25 mm
Mated Stacking Heights2.5 mm, 1.5 mm
Mounting TypeSurface Mount
Number of Rows2
Pitch [x]0.016 in
Pitch [x]0.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 2.07
10$ 1.80
25$ 1.73
50$ 1.69
100$ 1.61
250$ 1.46
500$ 1.34
1000$ 1.15
Digi-Reel® 1$ 2.07
10$ 1.80
25$ 1.73
50$ 1.69
100$ 1.61
250$ 1.46
500$ 1.34
1000$ 1.15
Tape & Reel (TR) 3000$ 1.07

Description

General part information

AXT432 Series

32 Position Connector Header, Center Strip Contacts Surface Mount Gold
