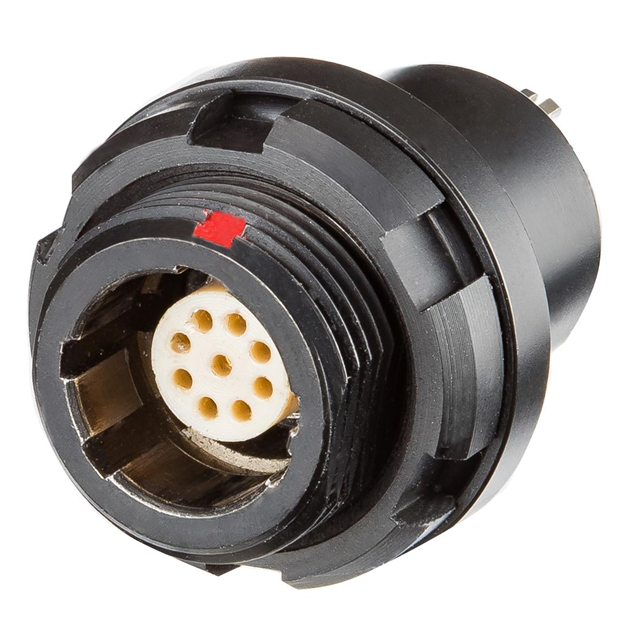

FDYB-09EEFP-RDK-001

Active

Amphenol LTW

FLOS Y SERIES PANEL CONN 9P FF W

Search across all available documentation for this part.

Active

Amphenol LTW

FLOS Y SERIES PANEL CONN 9P FF W

Technical Specifications

Parameters and characteristics for this part

Part	Fastening Type	Contact Finish - Mating	Mounting Feature	Primary Material	Shell Material	Number of Positions	Insert Material	Current Rating (Amps)	Shell Size - Insert	Voltage Rating	Mounting Type	Color	Shielding	Contact Material	Ingress Protection	Termination	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Orientation
Amphenol LTW FDYB-09EEFP-NDK-001	Push-Pull	Gold	Bulkhead - Front Side Nut	Metal	Metal	9	Thermoplastic	5 A	B-9	200 V	Panel Mount Through Hole	Black	Shielded	Copper Alloy	IPX8 - Waterproof	Solder	Receptacle Female Sockets	125 °C	-40 °C	N
Amphenol LTW FDYB-09EEFP-RDK-001	Push-Pull	Gold	Bulkhead - Front Side Nut	Metal	Metal	9	Thermoplastic	5 A	B-9	200 V	Panel Mount Through Hole	Black	Shielded	Copper Alloy	IPX8 - Waterproof	Solder	Receptacle Female Sockets	125 °C	-40 °C	R

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 46.28

General part information

9 Position Circular Connector Receptacle, Female Sockets Solder
