CWR-142-10-0003

Active

CW Industries

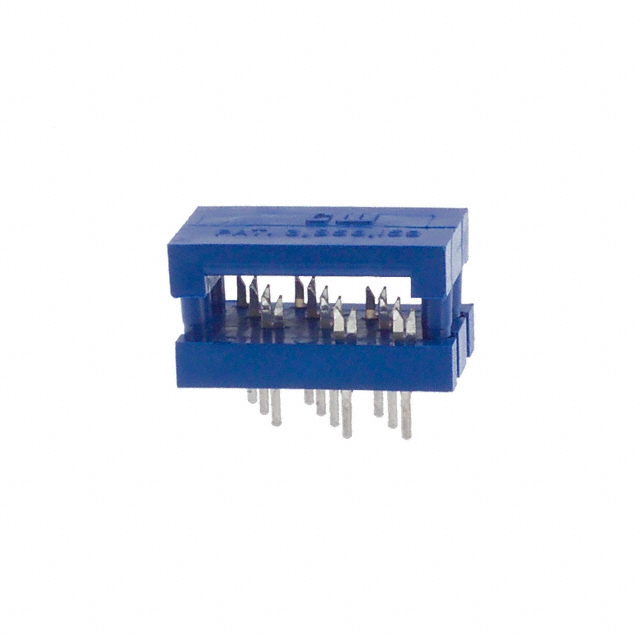

CONN IDC 10POS 28-30AWG VERT

Deep-Dive with AI

Search across all available documentation for this part.

CWR-142-10-0003

Active

CW Industries

CONN IDC 10POS 28-30AWG VERT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CWR-142-10-0003

Board-Side Pitch	5.08 mm
Board-Side Pitch	0.2 in
Cable Pitch	1.27 mm
Cable Pitch	0.05 in
Cable Termination	IDC
Color	Blue
Connector Type	Ribbon Cable
Contact Finish	Tin-Lead
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Features	Feed Through
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Gauge	Stranded or Solid
Wire Gauge [Max]	30 AWG
Wire Gauge [Min]	27.5 AWG

CWR-142 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Board-Side Pitch	Board-Side Pitch	Number of Positions Loaded	Row Spacing [x]	Row Spacing	Wire Gauge [Min]	Wire Gauge	Wire Gauge [Max]	Contact Finish	Cable Termination	Number of Positions	Color	Mounting Type	Features	Connector Type	Cable Pitch	Cable Pitch
CW Industries CWR-142-20-0003	2.54 µm	100 µin	5.08 mm	0.2 in	All	0.1 in	2.54 mm	27.5 AWG	Stranded or Solid	30 AWG	Tin-Lead	IDC	20	Blue	Through Hole	Feed Through	Ribbon Cable	1.27 mm	0.05 in
CW Industries CWR-142-60-0003	2.54 µm	100 µin	5.08 mm	0.2 in	All	0.1 in	2.54 mm	27.5 AWG	Stranded or Solid	30 AWG	Tin-Lead	IDC	60	Blue	Through Hole	Feed Through	Ribbon Cable	1.27 mm	0.05 in
CW Industries CWR-142-34-0003	2.54 µm	100 µin	5.08 mm	0.2 in	All	0.1 in	2.54 mm	27.5 AWG	Stranded or Solid	30 AWG	Tin-Lead	IDC	34	Blue	Through Hole	Feed Through	Ribbon Cable	1.27 mm	0.05 in
CW Industries CWR-142-40-0003	2.54 µm	100 µin	5.08 mm	0.2 in	All	0.1 in	2.54 mm	27.5 AWG	Stranded or Solid	30 AWG	Tin-Lead	IDC	40	Blue	Through Hole	Feed Through	Ribbon Cable	1.27 mm	0.05 in
CW Industries CWR-142-10-0000	0.25 Ám	10 Áin	5.08 mm	0.2 in	All	0.1 in	2.54 mm	27.5 AWG	Stranded or Solid	30 AWG	Gold	IDC	10	Blue	Through Hole	Feed Through	Ribbon Cable	1.27 mm	0.05 in
CW Industries CWR-142-34-0203			5.08 mm	0.2 in	All	0.1 in	2.54 mm	27.5 AWG	Stranded or Solid	30 AWG	Tin	IDC	34	Blue	Through Hole	Feed Through	Ribbon Cable	1.27 mm	0.05 in
CW Industries CWR-142-50-0003	2.54 µm	100 µin	5.08 mm	0.2 in	All	0.1 in	2.54 mm	27.5 AWG	Stranded or Solid	30 AWG	Tin-Lead	IDC	50	Blue	Through Hole	Feed Through	Ribbon Cable	1.27 mm	0.05 in
CW Industries CWR-142-20-0203			5.08 mm	0.2 in	All	0.1 in	2.54 mm	27.5 AWG	Stranded or Solid	30 AWG	Tin	IDC	20	Blue	Through Hole	Feed Through	Ribbon Cable	1.27 mm	0.05 in
CW Industries CWR-142-26-0203			5.08 mm	0.2 in	All	0.1 in	2.54 mm	27.5 AWG	Stranded or Solid	30 AWG	Tin	IDC	26	Blue	Through Hole	Feed Through	Ribbon Cable	1.27 mm	0.05 in
CW Industries CWR-142-10-0003	2.54 µm	100 µin	5.08 mm	0.2 in	All	0.1 in	2.54 mm	27.5 AWG	Stranded or Solid	30 AWG	Tin-Lead	IDC	10	Blue	Through Hole	Feed Through	Ribbon Cable	1.27 mm	0.05 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CWR-142 Series

10 Position Ribbon Cable Connector Blue IDC 28-30 AWG, Stranded or Solid Through Hole

Documents

Technical documentation and resources

No documents available
