8A1021-Z

Active

Nidec Components Corporation

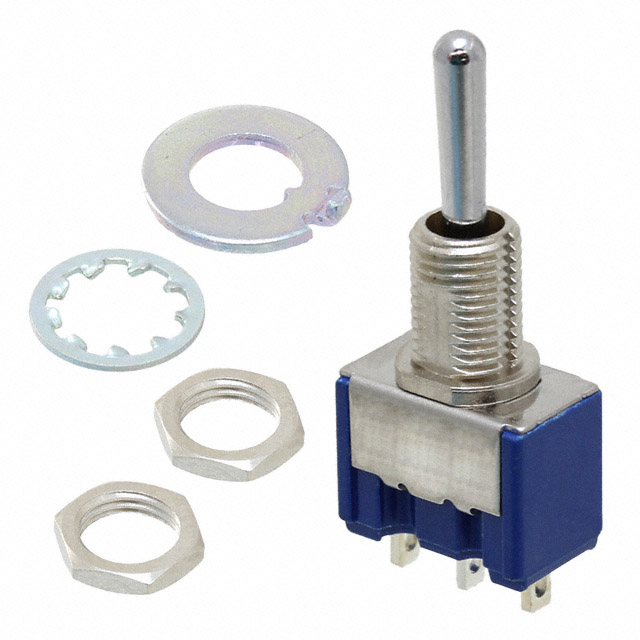

SWITCH TOGGLE SPDT 6A 125V

Search across all available documentation for this part.

Active

Nidec Components Corporation

SWITCH TOGGLE SPDT 6A 125V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 5.59

General part information

Toggle Switch SPDT Panel Mount

Technical documentation and resources

Specification	8A1021-Z	8A1021 Series

Actuator Type	Standard Round	Standard Round
Bushing Thread	1/4-40	1/4-40
Circuit	SPDT	SPDT
Current Rating (Amps)	4 A, 6 A	4 - 25 A
Electrical Life	50000 Cycles	50000 Cycles
Features	Sealed - Flux Protection	Sealed - Flux Protection
Illumination	Non-Illuminated	Non-Illuminated
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 - -20 ░C
Panel Cutout Dimensions [diameter]	6.5 mm	6.5 mm
Switch Function	On-Off-On	On-Off-On
Termination Style	Solder Lug	Solder Lug
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	30 V	20 - 30 V

Part	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Bushing Thread	Switch Function	Circuit	Termination Style	Voltage Rating - DC	Features	Illumination	Actuator Type	Current Rating (Amps)	Electrical Life
Nidec Components Corporation 8A1021-Z	125 V	-30 ░C	85 °C	6.5 mm	1/4-40	On-Off-On	SPDT	Solder Lug	30 V	Sealed - Flux Protection	Non-Illuminated	Standard Round	4 A, 6 A	50000 Cycles
Nidec Components Corporation 8A1021C-Z		-20 C	85 °C	6.5 mm	1/4-40	On-Off-On	SPDT	Solder Lug	20 V	Sealed - Flux Protection	Non-Illuminated	Standard Round	25 mA	50000 Cycles
