STHVDAC-253MTGF3
ObsoleteSTMicroelectronics
IC DAC 7BIT 16FLIPCHIP
Deep-Dive with AI
Search across all available documentation for this part.
STHVDAC-253MTGF3
ObsoleteSTMicroelectronics
IC DAC 7BIT 16FLIPCHIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | STHVDAC-253MTGF3 |
|---|---|
| Data Interface | SPI |
| Mounting Type | Surface Mount |
| Number of Channels [custom] | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |

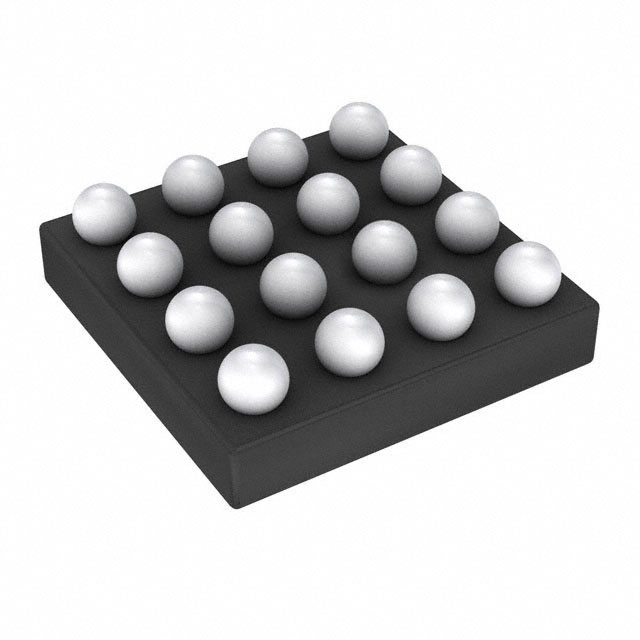

| Package / Case | 16-UFBGA, FCBGA |
| Resolution (Bits) | 7 b |
| Supplier Device Package | 16-FlipChip |
| Supplier Device Package [x] | 1.7 |
| Supplier Device Package [y] | 1.7 |
| Type | DAC |
| Voltage - Supply [Max] | 5 V |
| Voltage - Supply [Min] | 2.3 V |
| Voltage Supply Source | Analog and Digital |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 0.54 | |
| 10000 | $ 0.52 | |||
Description
General part information
STHVDAC Series
DAC 7 b SPI 16-FlipChip (1.7x1.7)
Documents
Technical documentation and resources
No documents available
