61-6441.4067
ActiveEAO

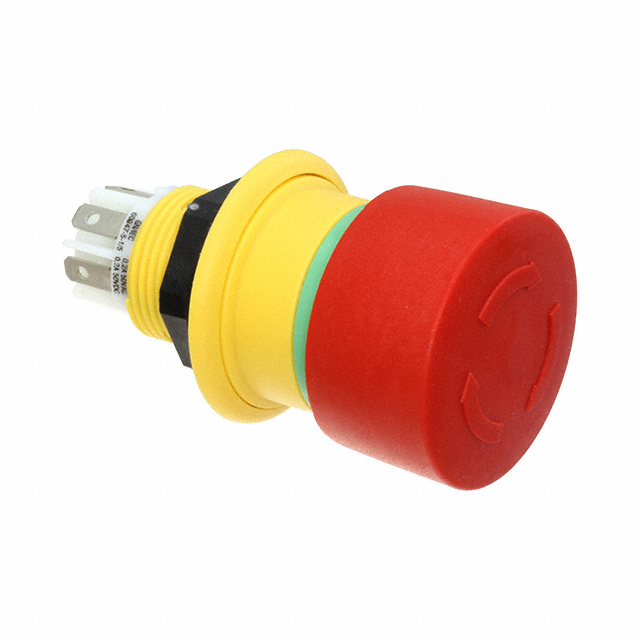

EMERGENCY STOP SWITCH, 3PST-NC, PUSH-PULL, QUICK CONNECT, SOLDER, 5 A, 250 V
Deep-Dive with AI
Search across all available documentation for this part.
61-6441.4067
ActiveEAO
EMERGENCY STOP SWITCH, 3PST-NC, PUSH-PULL, QUICK CONNECT, SOLDER, 5 A, 250 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 61-6441.4067 | 61-6441 Series |
|---|---|---|
| - | - | |
| Circuit | 3PST-NC | DPST-NO/NC, DPST-NC, 3PST-NC, SPST-NC, 3PST-2NC/1NO, 3PST-2NO/1NC |
| Ingress Protection | IP69K, IP67 | IP69K, IP67 |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C | 55 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 16 mm | 16 mm |
| Reset Operation | Twist | Twist |
| Switch Function | On-Off | On-Off, Off-On |
| Termination Style | 0.11 in | 0.11 in |
| Termination Style | Quick Connect, Solder | Quick Connect, Solder |
| Termination Style | 2.8 mm | 2.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
61-6441 Series
Emergency Stop Switches / E-Stop Switches Switch emergency-stop twist release 1NC+2NO ST/PT, non illuminated, green indication ring
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Mounting Type | Panel Cutout Dimensions [diameter] | Reset Operation | Ingress Protection | Circuit | Termination Style | Termination Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 61-6441.4087 | |||||||||||
EAO 61-6441.4077 | 55 °C | -25 °C | Off-On, On-Off | Panel Mount, Front | 16 mm | Twist | IP67, IP69K | DPST-NO/NC | 0.11 in | Quick Connect, Solder | 2.8 mm |
EAO 61-6441.4057 | 55 °C | -25 °C | On-Off | Panel Mount, Front | 16 mm | Twist | IP67, IP69K | DPST-NC | 0.11 in | Quick Connect, Solder | 2.8 mm |
EAO 61-6441.4057 | |||||||||||
EAO 61-6441.4067 | 55 °C | -25 °C | On-Off | Panel Mount, Front | 16 mm | Twist | IP67, IP69K | 3PST-NC | 0.11 in | Quick Connect, Solder | 2.8 mm |
EAO 61-6441.4047 | 55 °C | -25 °C | On-Off | Panel Mount, Front | 16 mm | Twist | IP67, IP69K | SPST-NC | 0.11 in | Quick Connect, Solder | 2.8 mm |
EAO 61-6441.4087 | 55 °C | -25 °C | Off-On, On-Off | Panel Mount, Front | 16 mm | Twist | IP67, IP69K | 3PST-2NC/1NO | 0.11 in | Quick Connect, Solder | 2.8 mm |
EAO 61-6441.4097 | 55 °C | -25 °C | Off-On, On-Off | Panel Mount, Front | 16 mm | Twist | IP67, IP69K | 3PST-2NO/1NC | 0.11 in | Quick Connect, Solder | 2.8 mm |
EAO 61-6441.4097 | |||||||||||
EAO 61-6441.4097 |
Description
General part information
61-6441 Series
Emergency Stop Switches / E-Stop Switches Switch emergency-stop twist release 1NC+2NO ST/PT, non illuminated, green indication ring
